Description

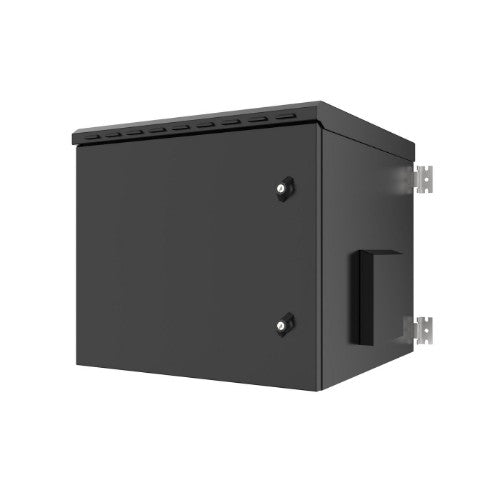

by Logon 19" Rack Cabinet 9U 60 x 60 Wallmount IP55
All kinds of 19” devices and equipment can be connected to the device uprights. 4 device mounting rails are used in 600×600 cabinets
Thanks to its hinged cover system, it offers easy intervention to the fan modules from the top.
and with the 125×125 dust filter on the right and left of the cabinet, it provides passive ventilation, while the louvers on its roof allow the hot air to be thrown out.
the IP 55 rack comes with dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet. The bottom closure is completely detachable if desired
Key Features
- Steel Door
- Wallmount
- IP55
- RAL9005
- Cage nuts can be bought separate
Description
Product Dimensions: 600 x 600 x 500mmAll kinds of 19” devices and equipment can be connected to the device uprights. 4 device mounting rails are used in 600×600 cabinets
Thanks to its hinged cover system, it offers easy intervention to the fan modules from the top.
and with the 125×125 dust filter on the right and left of the cabinet, it provides passive ventilation, while the louvers on its roof allow the hot air to be thrown out.
the IP 55 rack comes with dense cable entries from the bottom thanks to 1 PG48 IP gland, 2 PG21 IP glands and 3 28mm diameter PVC blind plugs located at the base of the cabinet. The bottom closure is completely detachable if desired
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Closed |
| Rack capacity | 9U |
| International Protection (IP) code | IP55 |
| Front door construction | Steel |
| Mounting hole shape | Round |
| Material | Steel |
| Cooling type | Passive |
| Product colour | Black |
| Weight & dimensions | |
| Package depth | 520 mm |
| Package width | 660 mm |
| Package height | 550 mm |
| Package weight | 36.5 kg |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 500 mm |
| Weight | 36 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
| Package depth | 520 mm |
| Package width | 660 mm |
| Package height | 550 mm |
| Package weight | 36.5 kg |
| Technical details | |
| Package width | 660 mm |
| Package height | 550 mm |
| Size (imperial) | 48.3 cm (19") |
| Cooling type | Passive |
| Rack capacity | 9U |
| International Protection (IP) code | IP55 |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
