Description

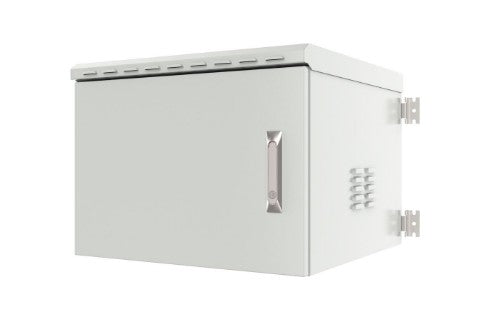

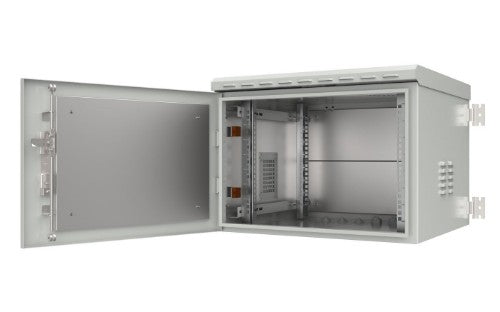

by Logon 19" Rack Cabinet 7U 60 x 60 Wallmount IP66
Note: The depth is higher because of the protruding roof, the depth without roof is 400mm (see the drawing for more details)
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
Key Features
- Steel Door
- Wallmount
- IP66
- RAL7035
- Cage nuts can be bought separate
Description
Product Dimensions: 600 x 600 x 410mmNote: The depth is higher because of the protruding roof, the depth without roof is 400mm (see the drawing for more details)
Colored strips located at the sides of the 4mm, antistatic, tempered, smoothed glass, door having an extruded aluminum frame and high fracture resistance present a decorative view.
In free standing type applications, they may be used with optional pinion feet or caster group.
By attaching ventilation module with 2 fans maximum (in option) to the ventilation hole at the upper chassis of the cabinet, active ventilation is achieved.
If no fan module is attached, these ventilation holes enable air circulation inside cabinet and discharging of the hot air by passive ventilation.
Since the side doors are fixed and not detachable, access to the cabinet is ensured only form the front in wall mounting applications and from the back and front in free standing applications.
Standard cabinet is delivered having 1 set and 2 device installation rails mounted thereon. Device installation rails enable the depth adjustments of the devices to be applied into the cabinet.
Specifications
| Features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Key lock | Yes |
| Frame type | Closed |
| Rack capacity | 7U |
| International Protection (IP) code | IP66 |
| Castor wheels | No |
| Removable back door | No |
| Front door construction | Steel |
| Mounting hole shape | Round |
| Material | Steel |
| Cooling type | Passive |
| Product colour | White |
| Rack rails | Yes |
| Preassembled | Yes |
| Soundproof | No |
| Weight & dimensions | |
| Package depth | 620 mm |
| Package width | 660 mm |
| Package height | 450 mm |
| Package weight | 26.5 kg |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 410 mm |
| Weight | 26 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging data | |
| Package depth | 620 mm |
| Package width | 660 mm |
| Package height | 450 mm |
| Package weight | 26.5 kg |
| Technical details | |
| Package width | 660 mm |
| Package height | 450 mm |
| Size (imperial) | 48.3 cm (19") |
| Cooling type | Passive |
| Rack capacity | 7U |
| International Protection (IP) code | IP66 |
| Colour | |
| Product colour | White |
| Material | |
| Material | Steel |
