Description
6x USB 3.0, 2x DisplayPort 1.2, Gigabit Ethernet, HDMI 1.4, DVI-D, VGA, 3.5mm Combo, 230W, Taiwan

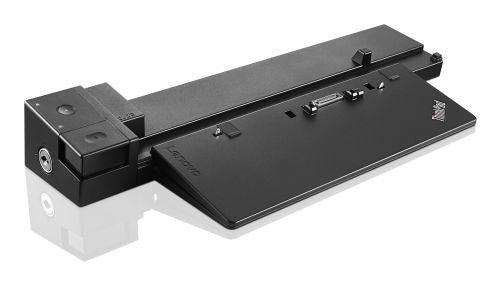

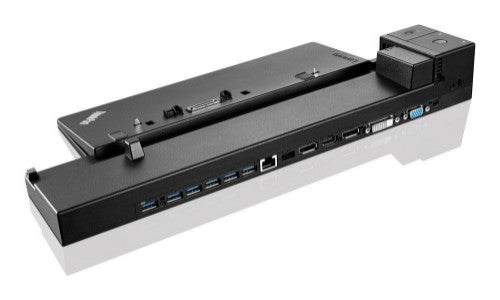

With an enlarged support base, the Workstation Dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230W AC adapter to power and charge your mobile workstation notebook.
Description

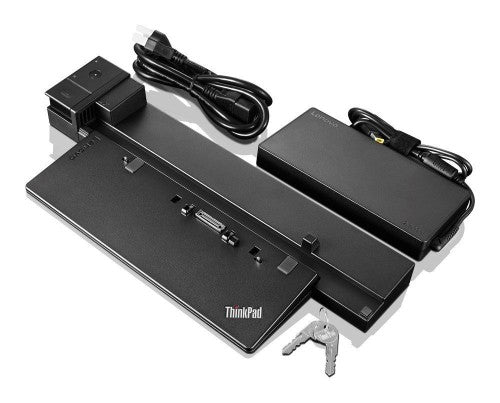

The completely redesigned and supercharged ThinkPad Workstation Dock with included ThinkPad 230W AC adapter enhances your work capability with multiple connectivity options. As the ultimate multi-port docking solution, the ThinkPad Workstation Dock includes a range of video outputs, including HDMI 1.4, and DP 1.2 to support multiple external monitors delivering outstanding driver free video quality.With an enlarged support base, the Workstation Dock can accommodate both P50 and P70 mobile workstation notebooks. It comes with 6x USB 3.0 ports, one of which supports always-on USB charging to charge your tablet or mobile device without even needing to connect your ThinkPad notebook. The other USB 3.0 ports are ideal for connecting memory sticks, external storage devices and other productivity accessories as needed. Additional ports on the ThinkPad Workstation dock include a 10/1000 Gigabit Ethernet connection, 2x display 1.2 ports, 1x DVI-D port, 1x HDMI 1.4 port, 1x stereo/mic combo audio port and 1x VGA port. The dock comes with a 230W AC adapter to power and charge your mobile workstation notebook.
Specifications
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Headphone connectivity | 3.5 mm |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DVI-D ports quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| DC-in jack | Yes |
| Connectivity technology | Docking |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Product colour | Black |
| Card reader integrated | No |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad P50/P70 |
| Cable lock slot | Yes |
| Certification | AS / NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC |
| Technical details | |
| Product colour | Black |
| Brand compatibility | Lenovo |
| Compatibility | ThinkPad P50/P70 |
| Cable lock slot | Yes |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Software | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 43 °C |
| Operating relative humidity (H-H) | 8 - 95% |
| Weight & dimensions | |
| Weight | 980 g |
| Width | 402.2 mm |
| Depth | 165.4 mm |
| Height | 55.6 mm |
| Package weight | 2.64 kg |
| Package width | 443 mm |
| Package depth | 215 mm |
| Package height | 112 mm |
| Design | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Product colour | Black |
| Cable lock slot | Yes |
| Certification | AS / NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC |
| Packaging data | |
| Package weight | 2.64 kg |
| Package width | 443 mm |
| Package depth | 215 mm |
| Package height | 112 mm |
| Packaging content | |
| Quick start guide | Yes |
| Manual | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Certificates | |
| Certification | AS / NZS S-DOC, VCCI, BSMI, KCC, NOM, GOST, CB, CE, UkrSEPRO, EC-DoC, UL, FCC |
