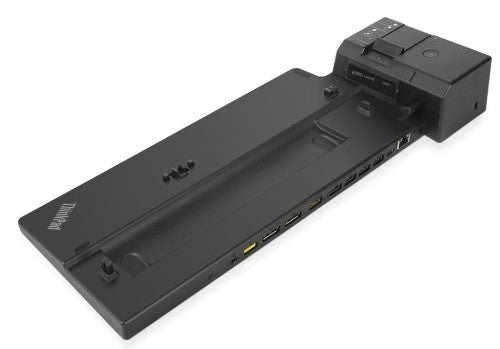

ThinkPad Pro Docking Station, 135W, 765g
Description
ThinkPad® Pro Docking Station (40AH) provides a docking experience for Large Enterprise ThinkPad customers. The innovative side-connector, designed exclusively for ThinkPad notebooks, provides a driver-free way to connect conveniently and securely to a range of USB accessories and external displays, while rapid charging support and a mirrored power button make going mobile even easier. Designed for large enterprise environments, Dock without LAN chip, can support Wake on LAN, PXE Boot, vPro or DASH, which rely on System design.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Thunderbolt ports quantity |
0 |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
0 |
| DisplayPorts quantity |
2 |
| Microphone in |
No |
| Headphone outputs |
0 |
| DC-in jack |
Yes |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Product colour |
Black |
| Card reader integrated |
No |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Technical details |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| Harmonized System (HS) code |
84733020 |
| Storage |
|---|
| Card reader integrated |
No |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 35 °C |
| Operating relative humidity (H-H) |
8 - 95% |
| Weight & dimensions |
|---|
| Weight |
765 g |
| Width |
159 mm |
| Depth |
378 mm |
| Height |
54.1 mm |
| Package weight |
1.95 kg |
| Package width |
200 mm |
| Package depth |
422 mm |
| Package height |
86 mm |
| Design |
|---|
| Product colour |
Black |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Packaging data |
|---|
| Package weight |
1.95 kg |
| Package width |
200 mm |
| Package depth |
422 mm |
| Package height |
86 mm |
| Packaging content |
|---|
| Manual |
Yes |
| AC adapter included |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
