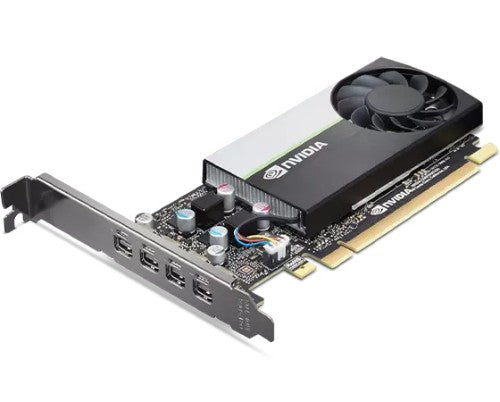

Nvidia T600 4GB miniDPx4 Graphics Card with HP bracket
Key Features
- 4GB of GDDR6 memory
- PCI Express Interface: PCIe 3.0 x 16
- 640 streaming multiprocessor(SMX) cores deliver incredible performance with peak power consumption of 40W
- Support 4 simultaneous display and up to 5K resolution with VESA® DisplayPort® connectors
Description
Nvidia T600 4GB mini DP*4 Graphics Card with High-Profile bracket is powered by NVIDIA Turing graphics processing unit (GPU) technology and 4GB of GGDR6 memory. The NVIDIA T600 graphics board is targeted for professional CAD, DCC and visualization designers, engineers, and users. Get the budget friendly high performing graphics board to drive today’s demanding professional workflows in a compact footprint.
Specifications
| Processor |
|---|
| Graphics processor family |
NVIDIA |
| Maximum displays per videocard |
4 |
| CUDA cores |
640 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
T600 |
| Memory |
|---|
| Discrete graphics card memory |
4 GB |
| Memory bandwidth (max) |
160 GB/s |
| Memory bus |
128 bit |
| Graphics card memory type |
GDDR6 |
| Ports & interfaces |
|---|
| Mini DisplayPorts quantity |
4 |
| DisplayPort version |
1.4 |
| Interface type |
PCI Express x16 3.0 |
| Video |
|---|
| DirectX version |
12.07 |
| Shader model version |
5.17 |
| OpenGL version |
4.68 |
| HDCP |
Yes |
| CUDA cores |
640 |
| Performance |
|---|
| DirectX version |
12.07 |
| Shader model version |
5.17 |
| OpenGL version |
4.68 |
| HDCP |
Yes |
| TV tuner integrated |
No |
| Design |
|---|
| Cooling type |
Active |
| Number of slots |
1 |
| Certification |
BSMI, FCC, ICES, CE, VCCI, KCC, RCM, CB, Morocco |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Power |
|---|
| Power consumption (max) |
40 W |
| Weight & dimensions |
|---|
| Number of slots |
1 |
| Weight |
129 g |
| Height |
68.9 mm |
| Length |
155.9 mm |
| Technical details |
|---|
| Cooling type |
Active |
| TV tuner integrated |
No |
| Harmonized System (HS) code |
84733020 |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7 |
| Packaging data |
|---|
| Package type |
Box |
| Package weight |
500 g |
| Certificates |
|---|
| Certification |
BSMI, FCC, ICES, CE, VCCI, KCC, RCM, CB, Morocco |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
