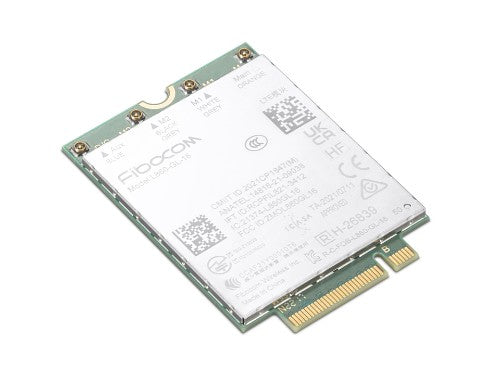

Lenovo 4XC1M72795 network card Internal WWAN 1000 Mbit/s

Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module for T14/P14s Gen 4

Key Features

• Fibocom L860-GL-16
• Embedded eSIM
• 4G WWAN module
• Dimension: 30 mm x 42 mm x 2.3 mm
• Interface: M.2 Key-B

Description

ThinkPad Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.

Specifications

Ports & interfaces
Internal	Yes
Interface	WWAN
Host interface	M.2
Connectivity technology	Wireless
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Wireless LAN features
3G standards	HSPA+, WCDMA
4G standard	LTE-TDD & LTE-FDD
Network
Maximum data transfer rate	1000 Mbit/s
3G standards	HSPA+, WCDMA
4G standard	LTE-TDD & LTE-FDD
MU-MIMO	Yes
Mobile network generation	4G
Design
Certification	CE for EU KCC for Korea IFT for Mexico NTC for Philippines ICASA for South Africa NCC for Taiwan.
Internal	Yes
Component for	Laptop
Antenna design	Internal
Software
Windows operating systems supported	Windows 11
System requirements
Windows operating systems supported	Windows 11
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	30 mm
Depth	42 mm
Height	2.3 mm
Weight	6.2 g
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
Packaging data
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
Performance
Windows operating systems supported	Windows 11
Certificates
Certification	CE for EU KCC for Korea IFT for Mexico NTC for Philippines ICASA for South Africa NCC for Taiwan.
