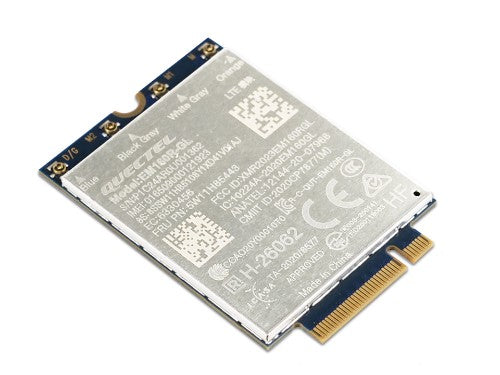

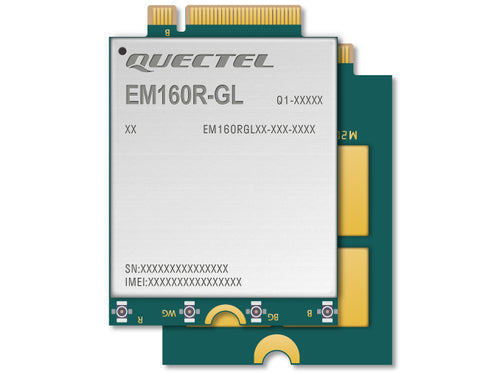

ThinkPad Quectel EM160R-GL 4G Cat 16 M.2 WWAN Module for P14s Gen 5 AMD
Key Features
- LTE-A CAT16 module with M.2 form factor
- Supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou and Galileo)
- Worldwide LTE-A and UMTS/HSPA+ coverage
- Supports PCIe standard interface for PC/Laptop application and multi-constellation GNSS
- Dimension: 30mm*42mm*2.3mm
Description
ThinkPad Quectel EM160R-GL 4G Cat 16 M.2 WWAN Module for P14s Gen 5 AMD is an LTE advanced category 16 module. Adopting the 3GPP Release 14 technology, it delivers speed of 1.0 Gbps downlink and 150 Mbps uplink peak data rates, and is designed in M.2 form factor.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| USB version |
2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity |
1 |
| Interface |
WWAN |
| Host interface |
M.2 |
| Connectivity technology |
Wireless |
| Technical details |
|---|
| Compatible products |
ThinkPad |
| Warranty period |
1 year(s) |
| Type |
WWAN Card |
| Network |
|---|
| Mobile network generation |
4G |
| Design |
|---|
| Compatible products |
ThinkPad |
| Internal |
Yes |
| Component for |
Laptop |
| Software |
|---|
| Windows operating systems supported |
Windows 10 |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-25 - 75 °C |
| Storage temperature (T-T) |
-40 - 90 °C |
| Weight & dimensions |
|---|
| Width |
42 mm |
| Depth |
30 mm |
| Height |
2.3 mm |
| Weight |
6.8 g |
| Package width |
53 mm |
| Package depth |
144 mm |
| Package height |
177 mm |
| Package weight |
30 g |
| Packaging data |
|---|
| Package width |
53 mm |
| Package depth |
144 mm |
| Package height |
177 mm |
| Package weight |
30 g |
| Performance |
|---|
| Compatible products |
ThinkPad |
| Windows operating systems supported |
Windows 10 |
| Other features |
|---|
| Type |
WWAN Card |
