Lenovo 4XC7A62580 network card Internal Fiber

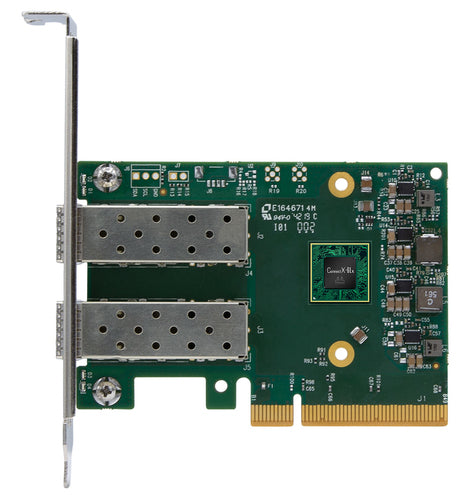

ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 2-Port PCIe

Key Features

• High performance with line speed message rate of 75Mpps
• Advanced RoCE
• ASAP2 - Accelerated Switching and Packet Processing
• Overlay tunneling accelerations
• Stateful rule checking for connection tracking
• Hardware Root-of-Trust and secure firmware update
• Best-in-class PTP performance
• ODCC compatible

Description

The ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 Ethernet Adapters are high performance 25Gb Ethernet network adapters that offer multiple network offloads including RoCE v2, NVMe over Ethernet and Open vSwitch.

This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ConnectX-6 Lx adapters and consider their use in IT solutions.

Specifications

Ports & interfaces
Internal	Yes
Fiber ports quantity	2
Fiber optic connector	SFP
Interface	Fiber
Host interface	PCI Express
Connectivity technology	Wired
Antenna
Antenna	No
Network
Networking standards	IEEE 1588v2, IEEE 802.1AX, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3by
Design
Antenna	No
Certification	CB / cTUVus / CE CE / FCC / VCCI / ICES / RCM RoHS
Internal	Yes
Component for	Server/workstation
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 90%
Weight & dimensions
Width	96 mm
Height	69 mm
Certificates
Certification	CB / cTUVus / CE CE / FCC / VCCI / ICES / RCM RoHS
