ThinkStation Intel Wi-Fi AX211 WLAN Module - P3
Key Features
- Intel Generic, high-performance, low-power dual band Pre-Standard-802.11ax R2 2x2, both with 160 MHz channel support - Wi-Fi 6E
- Bluetooth 5.2, Bluetooth Audio Offload
- Full support Windows 10/11, Linux, Chrome OS
- Fully compatible with certain ThinkStation PCs
Description

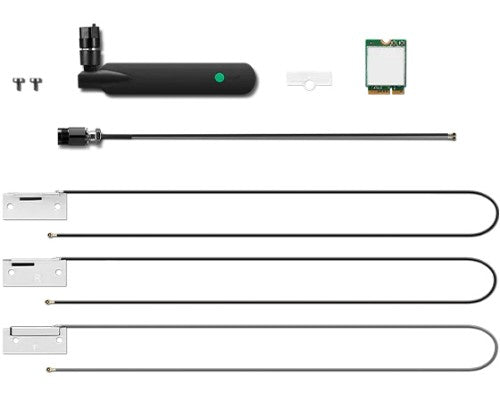

The ThinkStation Intel Wi-Fi 6E AX211 WLAN Module with External Antenna Kit using the Intel Wi-Fi 6E AX211 adapter which will dramatically reshape your connected experience at work with ThinkStation PCs. It represents the third generation of the new SoC-integrated architecture, which splits the Wi-Fi and Bluetooth radio blocks into an integrated MAC block, residing in the Intel SoC, and a PHY/RF block, residing in the RF companion module. Using a Wi-Fi-2x2 chip, has two RF chains for Wi-Fi, and one of the chains shares an antenna with the Bluetooth chain.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Interface |
WLAN |
| Host interface |
M.2 |
| Connectivity technology |
Wired |
| Wireless LAN features |
|---|
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Antenna |
|---|
| Antenna type |
2x2 |
| Network |
|---|
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| Wi-Fi |
Yes |
| Bluetooth version |
5.2 |
| Design |
|---|
| Certification |
USA: FCC Canada: IC European Union: CE Australia/New Zealand:ACMA Japan:MIC Taiwan:NCC India: ETA Thailand: NTC Singapore: IDA Brazil: ANATEL China: CMIIT Korea:KCC |
| Internal |
Yes |
| Antenna type |
2x2 |
| Component for |
PC |
| Antenna design |
External |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 80 °C |
| Operating relative humidity (H-H) |
50 - 90% |
| Weight & dimensions |
|---|
| Width |
30 mm |
| Depth |
22 mm |
| Height |
2.21 mm |
| Weight |
2.5 g |
| Package width |
132 mm |
| Package depth |
136 mm |
| Package height |
36 mm |
| Package weight |
80 g |
| Packaging data |
|---|
| Package width |
132 mm |
| Package depth |
136 mm |
| Package height |
36 mm |
| Package weight |
80 g |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 11 |
| Linux operating systems supported |
Yes |
| Certificates |
|---|
| Certification |
USA: FCC Canada: IC European Union: CE Australia/New Zealand:ACMA Japan:MIC Taiwan:NCC India: ETA Thailand: NTC Singapore: IDA Brazil: ANATEL China: CMIIT Korea:KCC |
| Other features |
|---|
| Bluetooth version |
5.2 |
| Antenna type |
2x2 |
