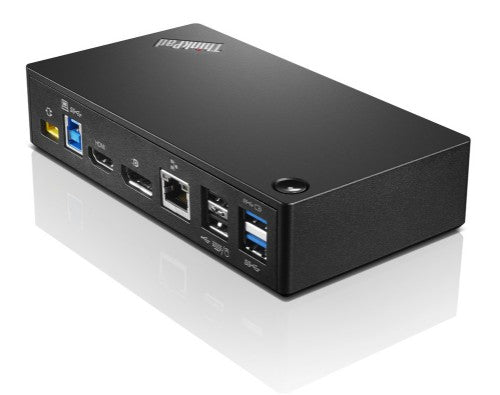

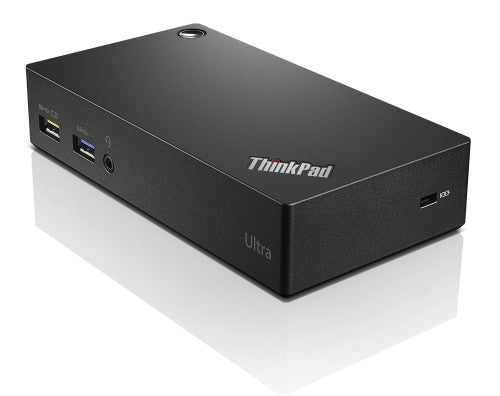

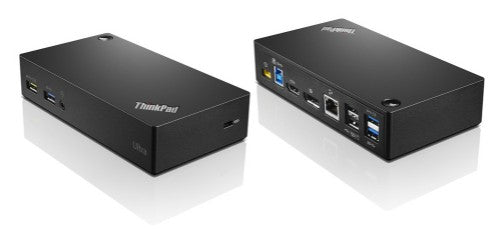

ThinkPad USB 3.0 Ultra Dock, 45W, 224g
Key Features
- Gigabit Ethernet Connection
- 2 x SuperSpeed USB 3.0, 2 x USB 2.0 - 4 pin USB Type A,1 x display / video - HDMI, 1 x display / video - DisplayPort, 1 x network - RJ-45, 1 x audio - headphones/microphone
- Security lock slot (cable lock sold separately), 2 Always On USB ports
Description
The ThinkPad USB 3.0 Ultra Dock is a universal USB docking solution that not only delivers a premium display experience (up to 4K2K resolution via DP port), but also provides quick and easy connection to all of the workspace peripherals you use every day. The dock can also charge your mobile devices via two always-on USB ports. Dock requires AC power to operate.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Connectivity technology |
Wired |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| Card reader integrated |
No |
| Brand compatibility |
Lenovo |
| Cable lock slot |
Yes |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
UL+cUL
EAC
TUV
Mark
Serbia Kvalitet
South Africa SABS&LoA
Israel SII
Ukraine DoC |
| Technical details |
|---|
| Product colour |
Black |
| Brand compatibility |
Lenovo |
| Cable lock slot |
Yes |
| Harmonized System (HS) code |
84733020 |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power supply type |
External |
| Power consumption (typical) |
45 W |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Weight & dimensions |
|---|
| Weight |
224 g |
| Width |
150 mm |
| Depth |
80 mm |
| Height |
32 mm |
| Package weight |
728 g |
| Package width |
214 mm |
| Package depth |
182 mm |
| Package height |
64 mm |
| Design |
|---|
| Windows operating systems supported |
Yes |
| Product colour |
Black |
| Cable lock slot |
Yes |
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
UL+cUL
EAC
TUV
Mark
Serbia Kvalitet
South Africa SABS&LoA
Israel SII
Ukraine DoC |
| Packaging data |
|---|
| Package weight |
728 g |
| Package width |
214 mm |
| Package depth |
182 mm |
| Package height |
64 mm |
| Packaging content |
|---|
| Cables included |
USB |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
FCC/ICES
CE
KCC
RCM
BSMI
VCCI
CB
UL+cUL
EAC
TUV
Mark
Serbia Kvalitet
South Africa SABS&LoA
Israel SII
Ukraine DoC |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Power supply type |
External |
