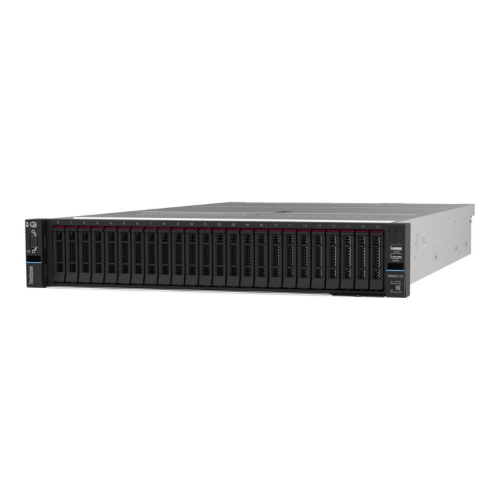

Description
Intel Xeon Silver 4514Y (30MB Cache, 2GHz), 32GB DDR5-SDRAM (5600MHz), 940-8i, 1100W
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
Key Features
- Intel Xeon Silver 4514Y (30MB Cache, 2GHz)
- 32GB (5600MHz) DDR5-SDRAM (1 x 32)
Description
The Lenovo ThinkSystem SR650 V3 is an ideal 2-socket 2U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V3 and consider its use in IT solutions.
Specifications
| Processor | |
|---|---|
| Processor cache | 30 MB |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.4 GHz |
| Number of processors installed | 1 |
| Processor model | 4514Y |
| Processor cores | 16 |
| Processor manufacturer | Intel |
| Maximum number of SMP processors | 2 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 32 GB |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory slots | 32x DIMM |
| Memory clock speed | 5600 MHz |
| Maximum internal memory | 8.19 TB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Storage | |
| Supported RAID controllers | 940-8i |
| Supported storage drive interfaces | SAS |
| Hot-swap | Yes |
| RAID support | Yes |
| Optical drive type | No |
| Internal drive bays | 8 |
| Graphics | |
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Optical drive type | No |
| Chassis type | Rack (2U) |
| Performance | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power | |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Certificates | |
| 80 PLUS certification | 80 PLUS Titanium |
| Management features | |
| Performance management | XClarity Controller Platinum |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Chassis type | Rack (2U) |
| 2.5" HDD support | 8 |
| Weight & dimensions | |
| Width | 445 mm |
| Height | 87 mm |
| Depth | 766 mm |
