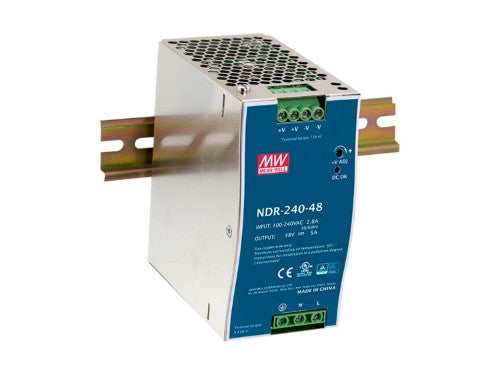

48V DC Industrial Power Supply, 240W, DIN-Rail, PoE Ready
Key Features
- Universal AC Input at Full Range
- Short Circuit, Overload / Over Voltage Protection
- Fanless Design
- Supports DIN-rail installation
- 100% Full Load Burn-in Test
- UL 508 approval
Description
The POW-4851 is a DIN-rail industrial power supply is ruggedized, universal input voltage range and full compliance with all important safety and EMC standards. It can be operated at full load across an ambient temperature range of -20 to 70 Celsius degree without need of additional cooling to guarantee quality for harsh industrial environment. Moreover, this power unit has been designed specifically for use with Infinity Industrial PoE Ethernet series, also it meets the requirements for both PoE and PoE Plus as well.
Specifications
| Design |
|---|
| Safety |
IEC60068, EN60950-1, UL60950-1, EN55011, EN55022 (CISPR22) Class B, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61000-6-2, EN61204, EN55024 |
| Product colour |
Blue, Silver |
| Country of origin |
China |
| Power |
|---|
| Total power |
240 W |
| AC input voltage |
90 - 264 V |
| Power protection features |
Over voltage, Overload, Short circuit |
| Performance |
|---|
| Safety |
IEC60068, EN60950-1, UL60950-1, EN55011, EN55022 (CISPR22) Class B, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61000-6-2, EN61204, EN55024 |
| Mean time between failures (MTBF) |
230200 h |
| Country of origin |
China |
| Harmonized System (HS) code |
84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Technical details |
|---|
| Technical features |
48V DC Out |
| Weight & dimensions |
|---|
| Width |
125.2 mm |
| Depth |
113.5 mm |
| Height |
63 mm |
| Weight |
1 kg |
| Packaging data |
|---|
| Package depth |
113.5 mm |
| Package width |
125.2 mm |
| Package height |
63 mm |
| Package weight |
1 kg |
| Certificates |
|---|
| Safety |
IEC60068, EN60950-1, UL60950-1, EN55011, EN55022 (CISPR22) Class B, EN61000-3-2, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11, EN61000-6-2, EN61204, EN55024 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Maximum current |
5 A |
| Technical features |
48V DC Out |
| Harmonized System (HS) code |
84733020 |
