Description

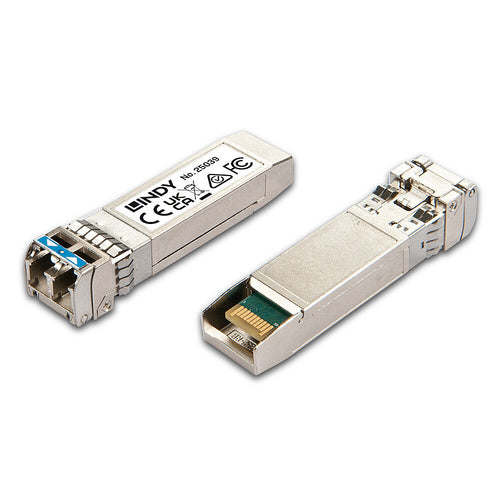

10GBase-LR/LW SFP+ LC Module - Singlemode
Standard SFP+ Module for common networking systems like Cisco, HP, Dell, Ubiquiti, D-Link, Zyxel, Netgear, Arista, Juniper or for mainboards with SFP+ slots like SuperMicro, Asus, Gigabyte and Asrock.
The module is built to comply with MSA (Multi Sourcing Agreement) standards and uses the industry standard LC interface to extend your network connectivity up to 10Km. It is also is fully hot pluggable, which enables you to install it without powering down your network switch and interrupting traffic flow.
Please note: This module is only compatible with 10G switches. 1G or Fast Ethernet switches are not supported.
Key Features
- Supports 10G Ethernet
- Standard SFP+ module form factorandnbsp;
- Duplex LC Connector
- 1310nm wavelength (Singlemode only)
- 2 Year Warranty
Description
The LINDY Transceiver Module allows a 10 Gigabit fibre optic connection to your network. Simply connect this module to your 10G Ethernet switch or to an Extender with SFP+ slot with a singlemode LC duplex cable for quick and easy connectivity.Standard SFP+ Module for common networking systems like Cisco, HP, Dell, Ubiquiti, D-Link, Zyxel, Netgear, Arista, Juniper or for mainboards with SFP+ slots like SuperMicro, Asus, Gigabyte and Asrock.
The module is built to comply with MSA (Multi Sourcing Agreement) standards and uses the industry standard LC interface to extend your network connectivity up to 10Km. It is also is fully hot pluggable, which enables you to install it without powering down your network switch and interrupting traffic flow.
Please note: This module is only compatible with 10G switches. 1G or Fast Ethernet switches are not supported.
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Ethernet LAN | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| SFP transceiver standard | LR, LW |
| Product colour | Grey |
| Housing material | Metal |
| Features | |
| Product colour | Grey |
| Housing material | Metal |
| Certification | UKCA, FCC, California Proposition 65 |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Certification | UKCA, FCC, California Proposition 65 |
| Compliance certificates | CE, REACH, RoHS |
| Sustainability | |
| Sustainability compliance | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Ethernet interface type | 10 Gigabit Ethernet |
| Weight & dimensions | |
| Width | 14.5 mm |
| Depth | 57.4 mm |
| Height | 12 mm |
| Weight | 17 g |
| Package depth | 45 mm |
| Package width | 115 mm |
| Package height | 20 mm |
| Package weight | 35 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 115 mm |
| Package height | 20 mm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Ethernet LAN | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | CE, REACH, RoHS |
| Packaging data | |
| Package depth | 45 mm |
| Package width | 115 mm |
| Package height | 20 mm |
| Package weight | 35 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
