Description

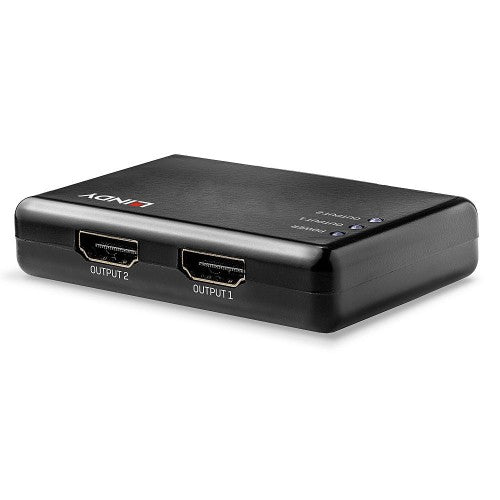

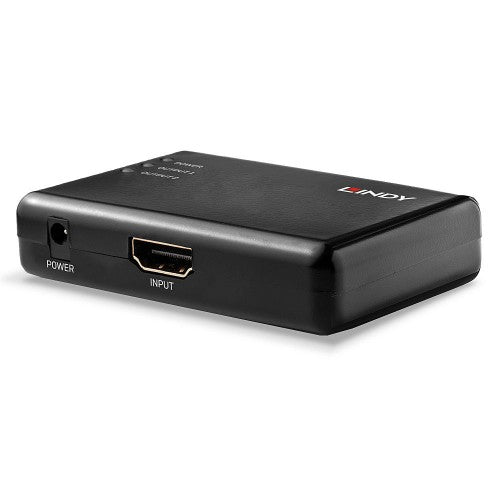

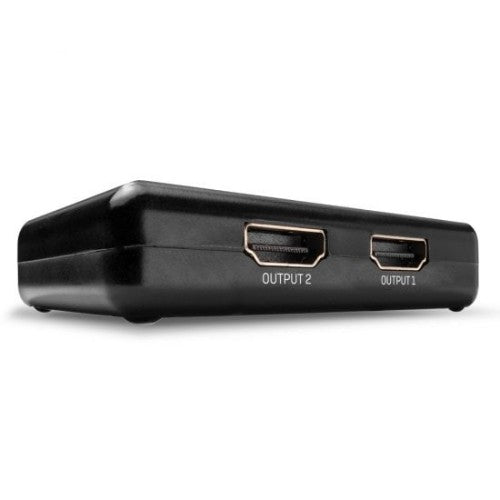

2 Port HDMI 10.2G Splitter, Compact
With support for resolutions up to 4K 3840x2160 @30Hz, content be viewed in superior clarity across dual displays.
The splitter's compact design and ability to be powered by USB allows for a simple and discreet installation into a variety of environments, from home entertainment setups to office use.
Key Features
- Connects a single 4K HDMI source to two 4K Ultra HD HDMI displays
- Supports resolutions up to 4K 3840x2160 @30Hz
- Supports HDMI audio pass-through
- USB powered for easy and discreet installation
- 2 year warranty
Description
The Lindy 2 Port HDMI 10.2G Splitter is a compact, low cost solution for easily splitting one 4K HDMI source device across two 4K HDMI displays.With support for resolutions up to 4K 3840x2160 @30Hz, content be viewed in superior clarity across dual displays.
The splitter's compact design and ability to be powered by USB allows for a simple and discreet installation into a variety of environments, from home entertainment setups to office use.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 3 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 1.4 |
| DC-in jack | Yes |
| Features | |
| Housing material | Plastic |
| Maximum refresh rate | 30 Hz |
| Colour depth | 8 bit |
| Maximum resolution | 3840 x 2160 pixels |
| Product colour | Black |
| Certification | CE, FCC, REACH & California Proposition 65 |
| HD type | 4K Ultra HD |
| Power | |
| Input current | 3.5 A |
| AC input voltage | 5 V |
| Weight & dimensions | |
| Weight | 39 g |
| Width | 76 mm |
| Depth | 48 mm |
| Height | 16.5 mm |
| Package weight | 230 g |
| Package type | Box |
| Package depth | 107 mm |
| Package width | 145 mm |
| Package height | 50 mm |
| Packaging data | |
| Package weight | 230 g |
| Package type | Box |
| Package depth | 107 mm |
| Package width | 145 mm |
| Package height | 50 mm |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Video | |
| Maximum refresh rate | 30 Hz |
| Colour depth | 8 bit |
| Maximum resolution | 3840 x 2160 pixels |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH & California Proposition 65 |
| Technical details | |
| Housing material | Plastic |
| Package width | 145 mm |
| Package height | 50 mm |
| Video out | 2x HDMI |
| HDMI version | 1.4 |
| Compliance certificates | RoHS |
| Packaging content | |
| Package type | Box |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
