Description

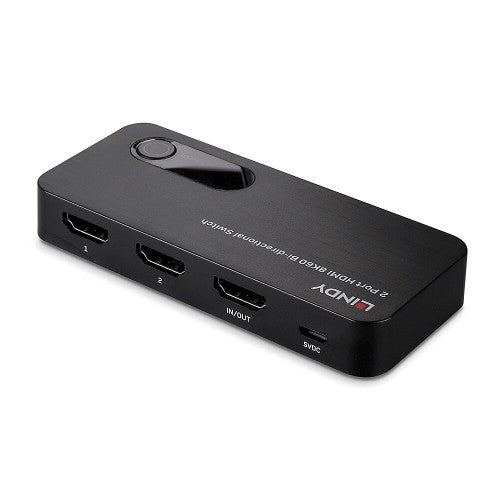

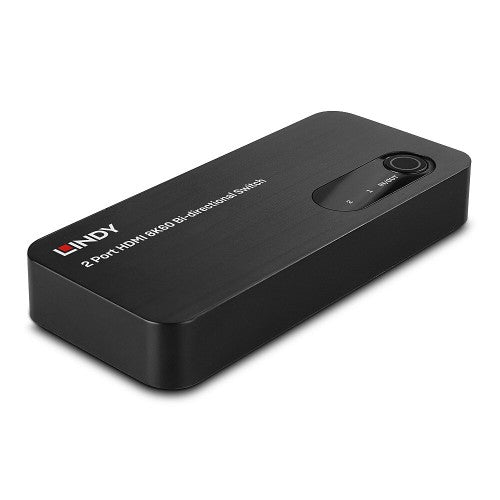

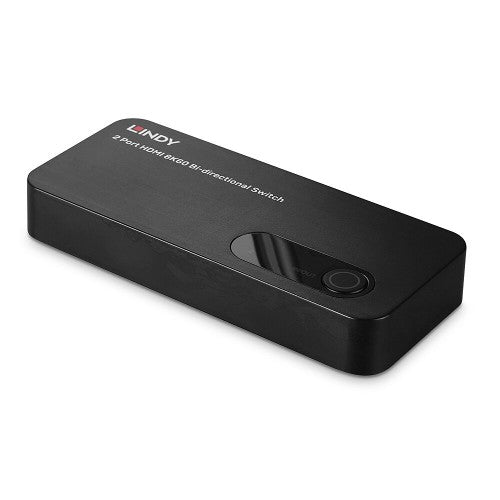

2 Port HDMI 8K60 Bi-Directional Switch
With support for resolutions up to 8K 7680x4320 @ 60Hz or 3840x2160 @ 120Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
Key Features
- Switches between two source devices to one output, or one source device to two outputs
- Supports 48G resolutions up to 8K@60Hz, with additional support for HDR
- Supports HDMI audio pass-through
- Compact, minimalist design to ensure no distraction from the display or installation
- 2 year warranty
Description
The Lindy HDMI 8K60 Bi-Directional Switch allows the user to connect two 8K source devices such as Blu-Ray players or games consoles to a single 8K display or projector and easily switch between them at the push of a button. Alternatively, connect one 8K source can be connected to two 8K displays or projectors and switch between displays at the touch of a button.With support for resolutions up to 8K 7680x4320 @ 60Hz or 3840x2160 @ 120Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| Features | |
| HD type | 8K Ultra HD |
| Colour depth | 10 bit |
| Product colour | Black |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Rack mounting | No |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| Material | ABS |
| LED indicators | Yes |
| HDCP | Yes |
| Bandwidth | 48 Gbit/s |
| HDCP version | 2.3 |
| Consumer Electronics Control (CEC) support | No |
| High Dynamic Range (HDR) supported | Yes |
| Power | |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Weight & dimensions | |
| Width | 102 mm |
| Height | 14 mm |
| Depth | 45 mm |
| Weight | 47 g |
| Package width | 127 mm |
| Package height | 17 mm |
| Package depth | 93 mm |
| Package weight | 88 g |
| Technical details | |
| HD type | 8K Ultra HD |
| Colour depth | 10 bit |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 102 mm |
| Height | 14 mm |
| Depth | 45 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Rack mounting | No |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| Material | ABS |
| LED indicators | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| HDCP | Yes |
| Bandwidth | 48 Gbit/s |
| Sustainability compliance | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Packaging data | |
| Package width | 127 mm |
| Package height | 17 mm |
| Package depth | 93 mm |
| Package weight | 88 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Sustainability | |
| Sustainability compliance | Yes |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
