Description

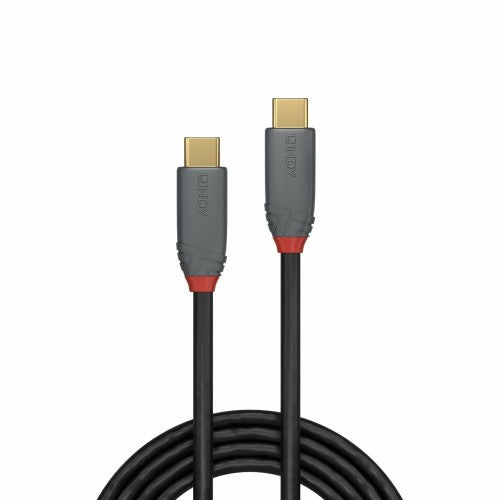

2m USB 3.2 Type C Cable, 5A PD, Anthra Line
Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.
USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m, 1.5m and 2m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Key Features
- Professional choice USB 3.2 Gen 2x2 Type C to C, 5A (100W), cable for commercial and high performance AV and IT installations
- SuperSpeed USB 20Gbps - supports data transfer speeds up to 20Gbps, Power Delivery and DisplayPort Alternate Mode
- Robust TPE housing, gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper conductors
Description
The full-featured Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (20V 5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.
USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m, 1.5m and 2m.
We have adapted the naming of our USB 3 cables to follow the updated USB specification.
USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps
USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps
USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable colour | Black |
| Plug and Play | Yes |
| AWG wire size | 32/30/22 |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 2 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 10000 Mbit/s |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| USB Power Delivery up to | 100 W |
| Maximum data transfer rate | 20 Gbit/s |
| Output voltage | 20 V |
| Cable diameter | 5.4 mm |
| Input current (max) | 5 A |
| Quantity per pack | 1 pc(s) |
| Power | |
| Output voltage | 20 V |
| Input current (max) | 5 A |
| Weight & dimensions | |
| Cable diameter | 5.4 mm |
| Cable length | 2 m |
| Width | 13 mm |
| Height | 7.75 mm |
| Depth | 41 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 10000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Cable colour | Black |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS, UL |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 & UL |
| Compliance certificates | REACH, RoHS, UL |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Width | 13 mm |
| Height | 7.75 mm |
| Depth | 41 mm |
| Warranty period | 2 year(s) |
| Compliance certificates | REACH, RoHS, UL |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
| Warranty period | 2 year(s) |
