Description

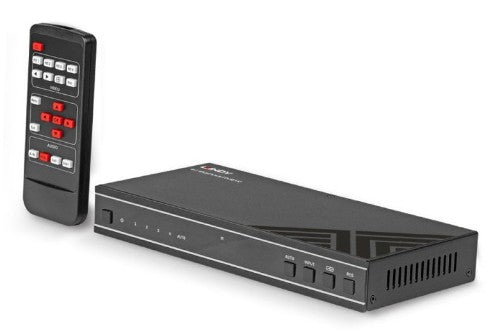

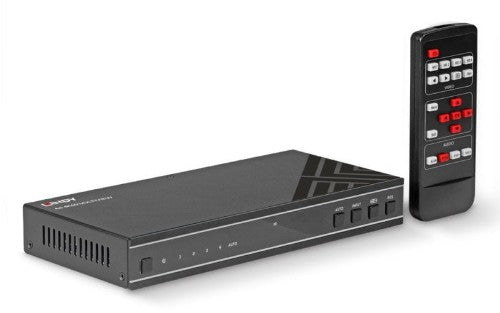

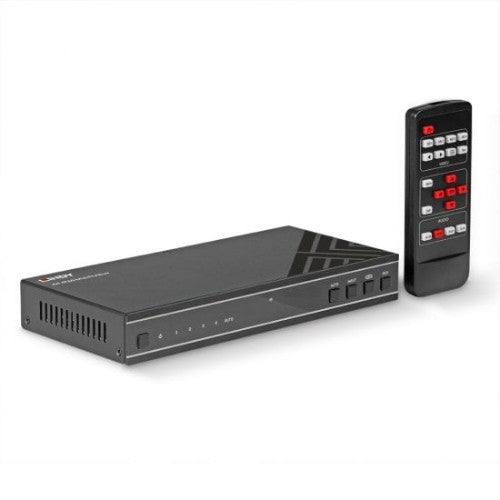

4x1 4K60 HDMI Seamless Multiview Switch
In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;

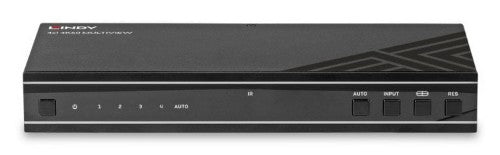

The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
Key Features
- Full 4K60Hz Input And Output for multiple sources on a single screen
- Supports 8 Display modes; Single, PIP, PBP 1 & 2, Triple 1 & 2, Quad 1 & 2
- Full volume support of volume and independent audio switching
- Seamless Switching of Audio And Video Signals
Description
This HDMI® 4x1 Multi-View Switch is a high-performance video switch designed for 4K displays, enabling signals from up to four different Ultra HD sources to be seamlessly integrated for simultaneous display on a single monitor. With four distinct viewing modes (Quad-View, Full Screen, Picture in Picture, and Dual Video), this Multi-View switch accommodates the monitoring of multiple video sources in various configurations supporting Ultra HD 4K resolutions on both input and output.In mission-critical environments, the switch ensures optimal performance through seamless switching, eliminating frame loss during transitions between connected source devices or different picture modes. It offers a cost-effective switch for different applications such as;
Digital Presentations
CCTV Surveillance & Control
Video Conference & Meeting rooms;
The switch allows independent switching between audio and video channels, offering flexibility in operation. This can be achieved by using the provided remote control or the front panel buttons, as well as RS-232 Control. Seamlessly transition between connected source devices, maintaining continuous use of a single audio source or monitoring a single video source while effortlessly switching to the other.
Specifications

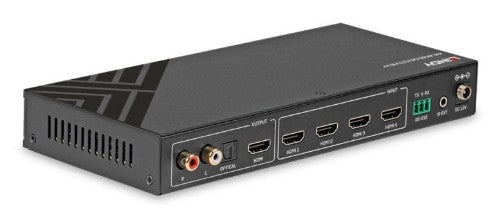

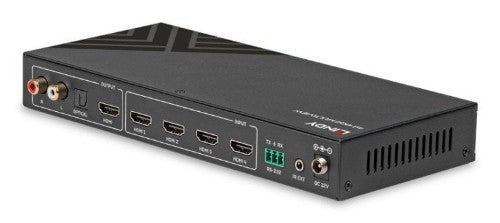

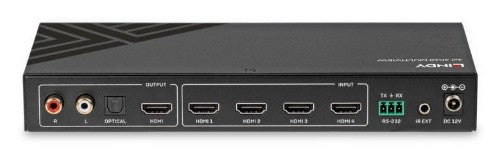

| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| Number of HDMI outputs | 1 |
| HDMI in | 4 |
| Audio (L/R) out | 1 |
| Features | |
| Product colour | Black |
| Supported graphics resolutions | 3840 x 2160 |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Material | Metal |
| HDCP | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP version | 2.2 |
| Power | |
| AC adapter input voltage | 2.5 V |
| AC input voltage | 12 V |
| Weight & dimensions | |
| Width | 219 mm |
| Height | 30 mm |
| Depth | 111 mm |
| Weight | 610 g |
| Package width | 280 mm |
| Package height | 78 mm |
| Package depth | 179 mm |
| Package weight | 1.08 kg |
| Technical details | |
| Storage temperature (T-T) | -4 - 140 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 219 mm |
| Height | 30 mm |
| Depth | 111 mm |
| Product colour | Black |
| Video port type | HDMI |
| Supported graphics resolutions | 3840 x 2160 |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| Material | Metal |
| HDMI ports quantity | 5 |
| HDCP | Yes |
| Remote control included | Yes |
| Bandwidth | 18 Gbit/s |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Packaging data | |
| Package width | 280 mm |
| Package height | 78 mm |
| Package depth | 179 mm |
| Package weight | 1.08 kg |
| Packaging content | |
| Screws included | Yes |
| Packaging content | 1 x 4K60 HDMI 4x1 Multiview Seamless UHD Video Switcher 1 x IR Remote Control 1 x 3pin-3.81mm Phoenix connector (male) 1 x 38KHz IR Wideband Receiver cable (1.5 Meters) 2 x Mounting Ears 4 x Machine Screws (KM3*4) 4 x Rubber Feet 1 x 12v/2.5A Locking Power Adapter 1 x User Manual |
| Manual | Yes |
| Remote control included | Yes |
| Cables included | HDMI |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -4 - 140 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
