Description

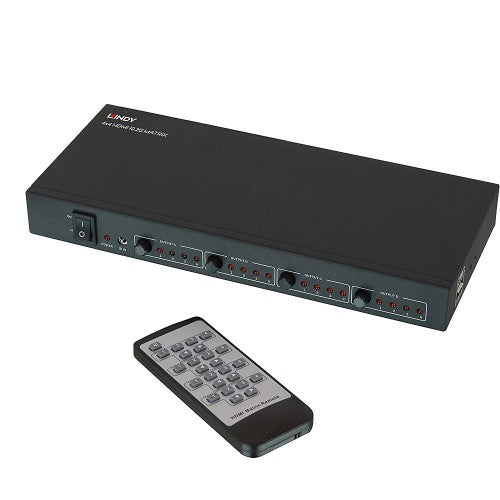

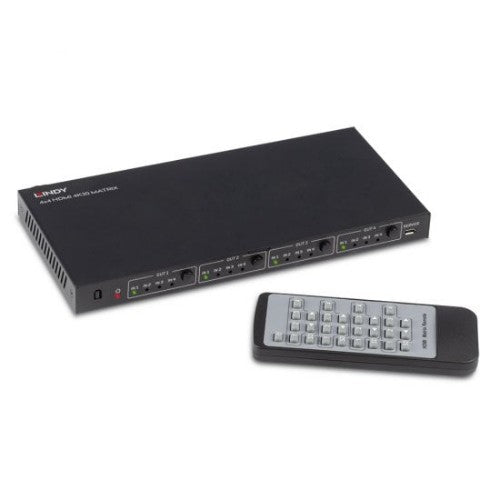

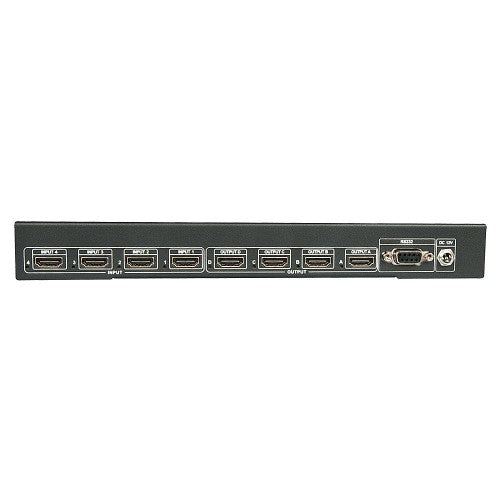

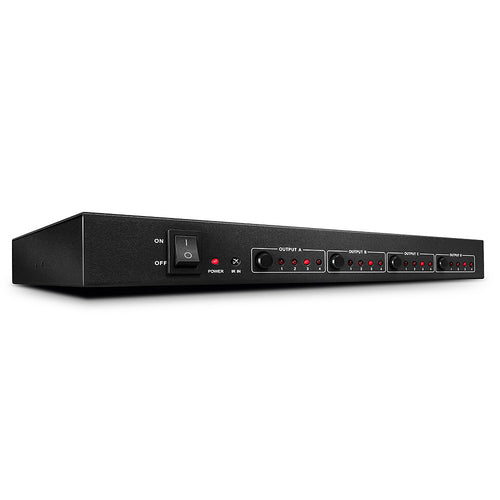

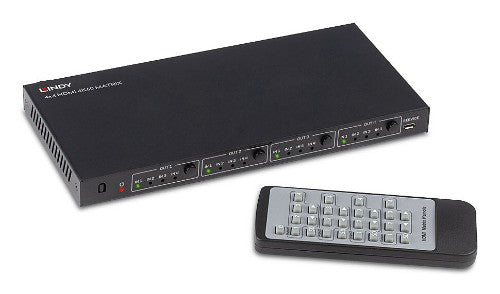

4x4 HDMI 4K60 Matrix
The Lindy 4x4 HDMI 4K 60 Matrix is an effective solution for distributing 4K content from up to 4 HDMI source devices, including PCs and media players, to 4 displays.
Supporting 4K@60Hz resolutions, content can be viewed in excellent quality - great for use with digital signage in retail, information display setups in educational buildings or engaging conference installations.
The matrix can be easily controlled with a variety of simple, effective options including push buttons on the main unit, IR or via RS-232 for integration into professional control systems.
Key Features
- Connects up to 4 4K source devices to 4 4K displays or projectors in any combinationandnbsp;
- Supports video resolutions up to 4K@60Hz 4:4:4 8bit
- Push buttons, IR remote and RS-232 for simple, flexible control
- Superior smart EDID management for ensuring optimum video performance
- 2 year warranty
Description
Matrices are multi-port solutions for distributing content from multiple sources to several displays in a variety of configurations.The Lindy 4x4 HDMI 4K 60 Matrix is an effective solution for distributing 4K content from up to 4 HDMI source devices, including PCs and media players, to 4 displays.
Supporting 4K@60Hz resolutions, content can be viewed in excellent quality - great for use with digital signage in retail, information display setups in educational buildings or engaging conference installations.
The matrix can be easily controlled with a variety of simple, effective options including push buttons on the main unit, IR or via RS-232 for integration into professional control systems.
Specifications
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| HDMI ports quantity | 8 |
| Number of HDMI outputs | 4 |
| HDMI in | 4 |
| DC-in jack | Yes |
| Features | |
| Dolby technologies | DTS-HD, Dolby TrueHD |
| Product colour | Black |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| LED indicators | Yes |
| Full HD | Yes |
| Bandwidth | 18 Gbit/s |
| HDCP version | 2.2 |
| Power | |
| AC input voltage | 12 V |
| Weight & dimensions | |
| Dimensions (WxDxH) | 267 x 120 x 32 mm |
| Technical details | |
| Dolby technologies | DTS-HD, Dolby TrueHD |
| Product colour | Black |
| Video port type | HDMI |
| Video out | 4x HDMI |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 4096 x 2160 |
| LED indicators | Yes |
| HDMI version | 2.0 |
| HDMI ports quantity | 8 |
| Remote control included | Yes |
| Full HD | Yes |
| Bandwidth | 18 Gbit/s |
| Harmonized System (HS) code | 85176990 |
| Packaging content | |
| Remote control included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
