Description

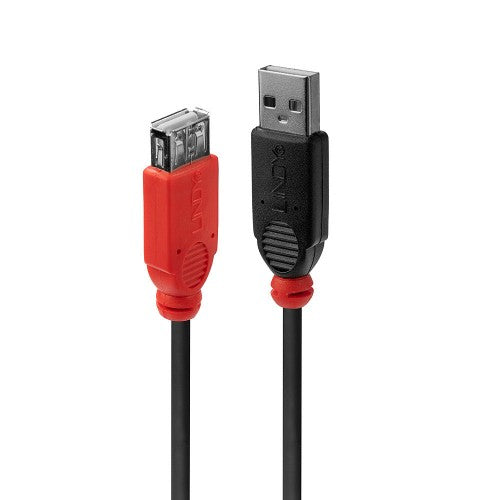

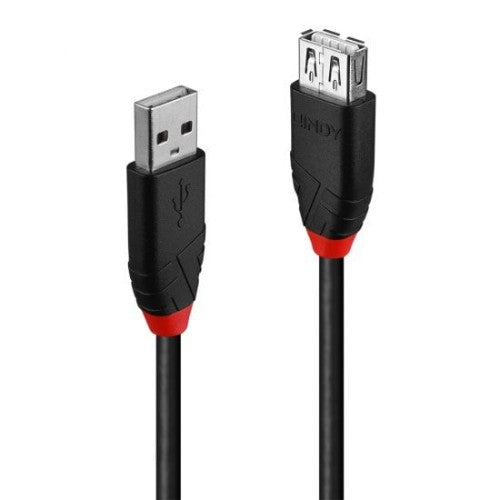

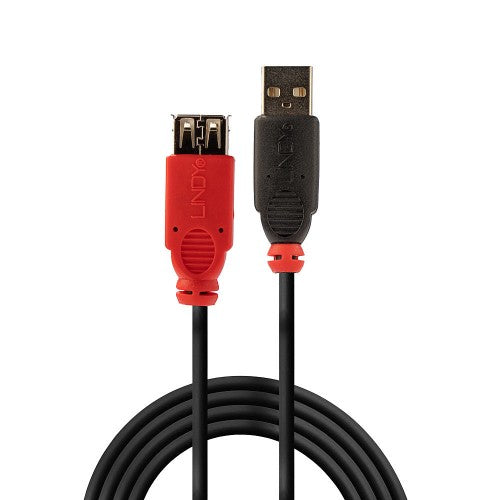

5m USB 2.0 Active Extension Slim
With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.
The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
Key Features
- 5 metre USB 2.0 Active Extension Repeater Lead
- Supports transfer rates up to 480Mbps
- For even greater distances simply connect up to 5 cables in series
- Plug and Play
- 2 year warranty
Description
The Lindy USB 2.0 Active Extension Cable Slim uses built-in active electronics to extend the cable length of a USB 2.0 device by an additional 5m whilst continuing to support data transfer rates of up to 480Mbps.With its USB A male and USB A female connector it allows Type A devices to be connected at longer distances and ensures flexible positioning. Up to 5 extension cables can be chained together to achieve a distance of 25m.
The cable's unique and slim design allows the active electronics to fit into a standard USB connector - an advantage over other active USB leads which use bulky connectors. Compatible with all USB Type A equipped computers.
Specifications
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Plug and Play | Yes |
| AWG wire size | 24/28 |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Cable length | 5 m |
| Connector contacts plating | Gold |
| Maximum data transfer rate | 480 Mbit/s |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS & REACH |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Conductor material | Tinned copper |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector material | Nickel |
| Contact material | Brass |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Connector housing material | Plastic |
| Transmission medium | Twisted pair |
| Nominal attenuation | 24AWG: 93.25Ohm/km 28AWG: 237.25Ohm/km |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable diameter | 4.8 mm |
| Weight | 180 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Cable length | 5 m |
| Weight | 180 g |
| Bend radius (min) | 4.8 cm |
| Connector 1 dimensions (WxDxH) | 15 x 40 x 6 mm |
| Connector 2 dimensions (WxDxH) | 15 x 45 x 8 mm |
| Package width | 214 mm |
| Package depth | 146 mm |
| Package height | 38 mm |
| Package weight | 200 g |
| Package type | Blister |
| Packaging data | |
| Package width | 214 mm |
| Package depth | 146 mm |
| Package height | 38 mm |
| Package weight | 200 g |
| Package type | Blister |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Ports & interfaces | |
| USB version | USB 2.0 |
| Connector 1 | USB A |
| Connector 2 | USB A |
| Connector contacts plating | Gold |
| Data transmission | |
| Maximum data transfer rate | 480 Mbit/s |
| Technical details | |
| Product colour | Black |
| Harmonized System (HS) code | 84733080 |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS & REACH |
| Other features | |
| Package type | Blister |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
