Description

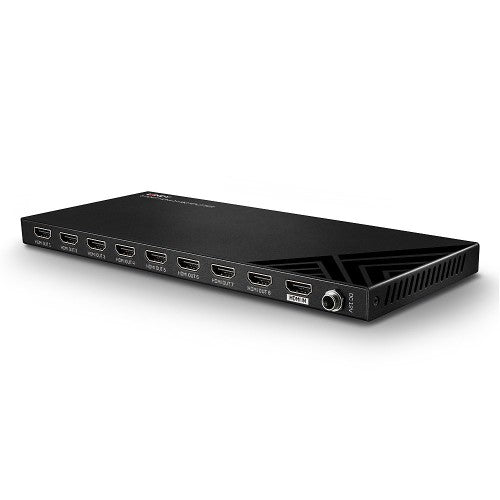

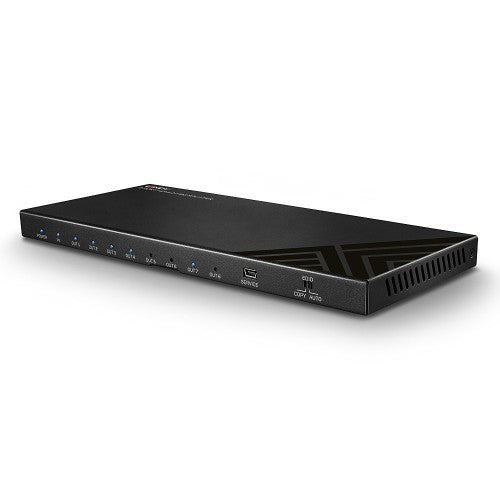

8 Port HDMI 18G Splitter
Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty
The Lindy 8 Port HDMI 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.
The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.
HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen and with a screw type DC jack. Additionally, the power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur.
Key Features
- Split a single HDMI 2.0 source across 8 HDMI displays
- Supports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- HDCP 2.2 support for enhanced compatibility
- EDID Management for hassle free installation
Description
Split a single HDMI 2.0 source across 8 HDMI displaysSupports resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
HDCP 2.2 support for enhanced compatibility
EDID Management for hassle free installation
2 Year Warranty
The Lindy 8 Port HDMI 18G Splitter is a compact, high quality solution for distributing HDMI 2.0 18G signals across multiple displays from one source device. With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching digital signage in retail scenarios, showing high quality video in different rooms in medical facilities or ensuring audiences do not miss any of the action in dual display sports bars. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, superior contrasts and a much wider colour gamut, for more lifelike colour.
The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices.
HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players, while a smart EDID management switch on the unit provides maximum compatibility with the display. The splitters durable, compact design also ensures the unit can be installed discreetly, ensuring there is no distraction from the content on screen and with a screw type DC jack. Additionally, the power supply is connected via a screw type DC jack, providing a secure and reliable connection, ideal for installations where accidental disconnections could occur.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 9 |
| Video port type | HDMI |
| Video out | 8x HDMI |
| DC-in jack | Yes |
| Features | |
| LED indicators | Yes |
| Housing material | Metal |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Product colour | Black |
| Certification | CE, FCC, REACH, California Proposition 65 |
| HD type | 4K Ultra HD |
| Number of displays supported | 8 |
| Power | |
| AC input voltage | 12 V |
| Weight & dimensions | |
| Weight | 728 g |
| Width | 243 mm |
| Depth | 102 mm |
| Height | 16 mm |
| Package weight | 913 g |
| Package type | Box |
| Package depth | 183 mm |
| Package width | 277 mm |
| Package height | 68 mm |
| Packaging data | |
| Package weight | 913 g |
| Package type | Box |
| Package depth | 183 mm |
| Package width | 277 mm |
| Package height | 68 mm |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH, California Proposition 65 |
| Indication | |
| LED indicators | Yes |
| Technical details | |
| Housing material | Metal |
| Package width | 277 mm |
| Package height | 68 mm |
| Video out | 8x HDMI |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
