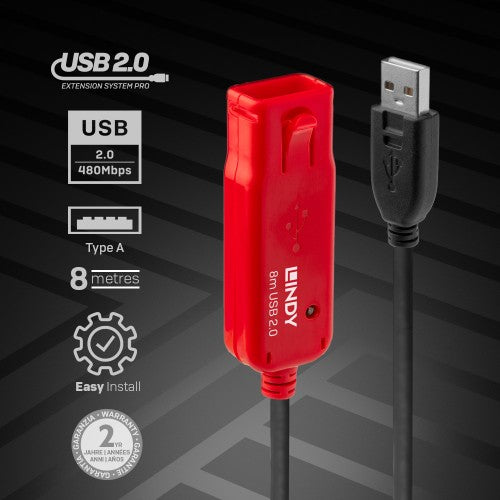

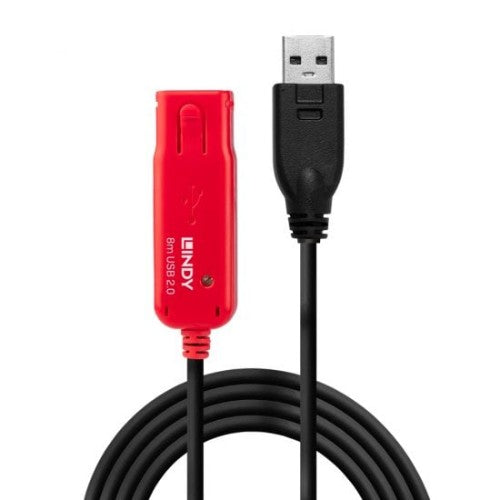

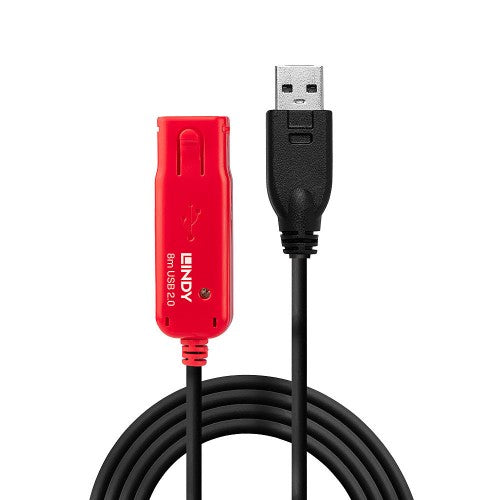

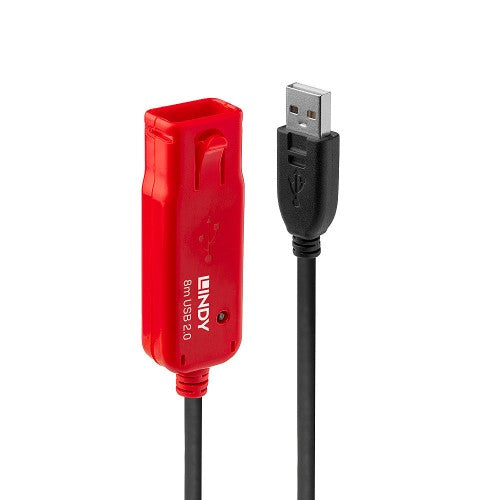

Lindy 8m USB 2.0 Active Extension Pro

8m USB 2.0 Active Extension Pro

Key Features

• High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device
• Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
• Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
• USB Type A Male to A Female – connects to the deviceandrsquo;s existing USB cable (2m maximum)
• 2 year warranty

Description

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

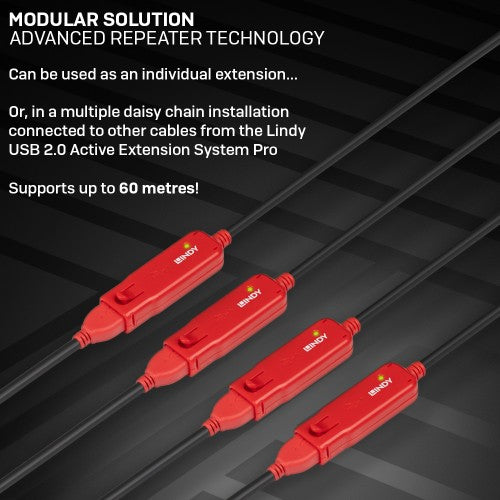

This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

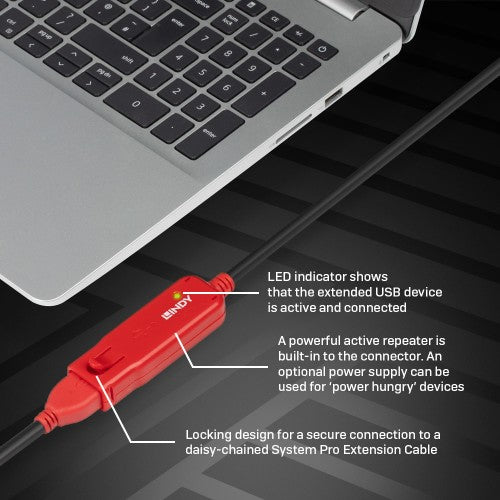

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Specifications

Features
Connector 1 form factor	Straight
Connector 2 form factor	Straight
AWG wire size	26/20
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Cable length	8 m
Connector contacts plating	Gold
Maximum data transfer rate	480 Mbit/s
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Cable type	Round cable
Connector 1 gender	Male
Connector 2 gender	Female
Conductor material	Tinned copper
Cable jacket material	Polyvinyl chloride (PVC)
Connector material	Gold/Nickel
Contact material	Brass
Connector shielding	Yes
Connector shield material	Aluminium
Connector housing material	Plastic
Transmission medium	Twisted pair
Nominal attenuation	(0.064 MHz, -0.08 dB) (0.256MHz, -0.11 dB) (0.512MHz, -0.13 dB) (0.772 MHz, -0.15 dB) (1 MHz, -0.2 dB) (4 MHz, -0.39 dB) (8 MHz, -0.57 dB) (12 MHz, -0.76 dB) (24 MHz, -0.95 dB) (48 MHz, -1.35dB) (96 MHz, -1.9 dB) (200 MHz, -3.2 dB) (400 MHz, -5.8 dB)
Cable diameter	5 mm
Weight	280 g
Quantity per pack	1 pc(s)
Weight & dimensions
Cable diameter	5 mm
Cable length	8 m
Weight	280 g
Bend radius (min)	2.6 cm
Connector 1 dimensions (WxDxH)	15 x 43 x 8 mm
Connector 2 dimensions (WxDxH)	20 x 64 x 13 mm
Package width	238 mm
Package depth	66 mm
Package height	202 mm
Package weight	440 g
Package type	Box
Packaging data
Package width	238 mm
Package depth	66 mm
Package height	202 mm
Package weight	440 g
Package type	Box
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Ports & interfaces
USB version	USB 2.0
Connector 1	USB A
Connector 2	USB A
Connector contacts plating	Gold
Data transmission
Maximum data transfer rate	480 Mbit/s
Technical details
Product colour	Black
Manual	Yes
Harmonized System (HS) code	85044095
Certificates
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Other features
Package type	Box
Product colour	Black
Cable type	Round cable
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Logistics data
Harmonized System (HS) code	85044095
