Description

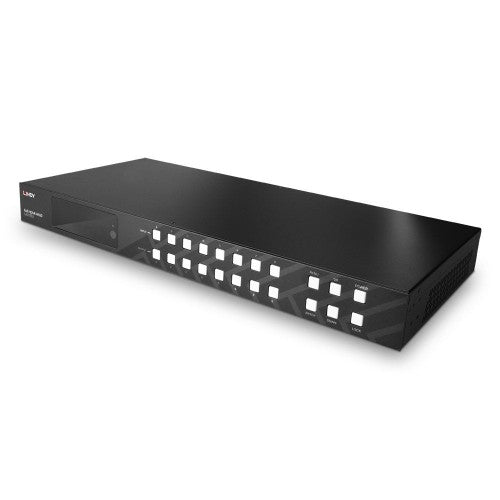

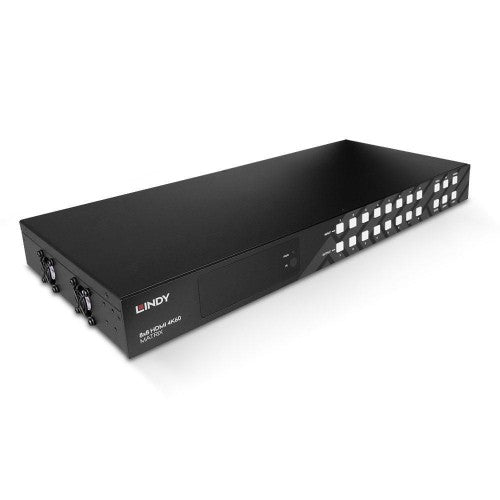

8x8 HDMI 4K60 Matrix
As well as HDMI audio pass-through, individual Coax and 3.5mm ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.
The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
Key Features
- Switch between 8 HDMI source devices and 8 HDMI displays connected simultaneously
- Supports resolutions up to 4K 60Hz, with additional support for HDR
- Allows for flexible and convenient switching between 8 HDMI sources, perfect for commercial and professional settings
- Easy to use and set up, with an intuitive Web Gui, Remote Control or Push Buttons
- 2 year warranty
Description
Matrix Switches are premium solutions for distributing content from multiple source devices to multiple displays. The Lindy 8x8 HDMI 4K60 Matrix supports HDMI 2.0b 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions. Additional support for High Dynamic Range ensures video content is displayed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail, creating informational multi-display setups in education, or distributing content in commercial installations such as cinemas. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.As well as HDMI audio pass-through, individual Coax and 3.5mm ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content.The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.
The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.
This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.
Specifications
| Features | |
|---|---|
| Product type | AV matrix switcher |
| HDCP | Yes |
| HDCP version | 2.2 |
| EDID management | Yes |
| Bandwidth | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Audio formats supported | DTS, LPCM |
| Design | |
| Housing material | Metal |
| Housing colour | Black |
| Control type | Buttons |
| Certification | CP65 |
| Display | |
| Built-in display | Yes |
| Display type | OLED |

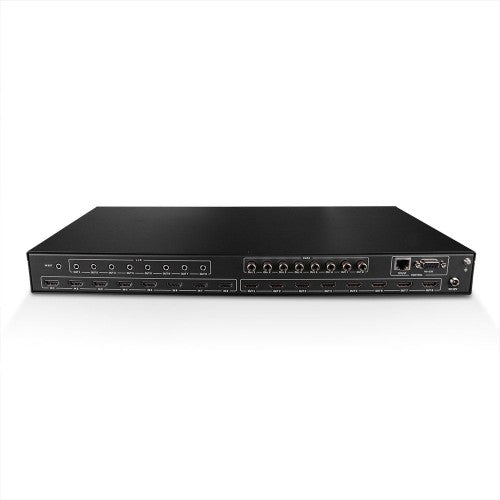

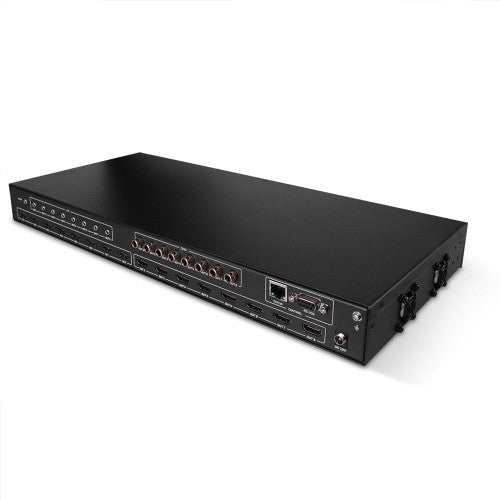

| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| HDMI input ports quantity | 8 |
| HDMI output ports quantity | 8 |
| Audio (L/R) out | 8 |
| DC-in jack | Yes |
| HDMI version | 2.0b |
| Power | |
| Power consumption (max) | 43 W |
| Input current | 5 A |
| Output voltage | 12 V |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 45 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Technical details | |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 200 mm |
| Height | 45 mm |
| Weight | 2.83 kg |
| Package weight | 4.06 kg |
| Package width | 510 mm |
| Package depth | 328 mm |
| Package height | 95 mm |
| Package type | Box |
| Packaging content | |
| Manual | Yes |
