Description

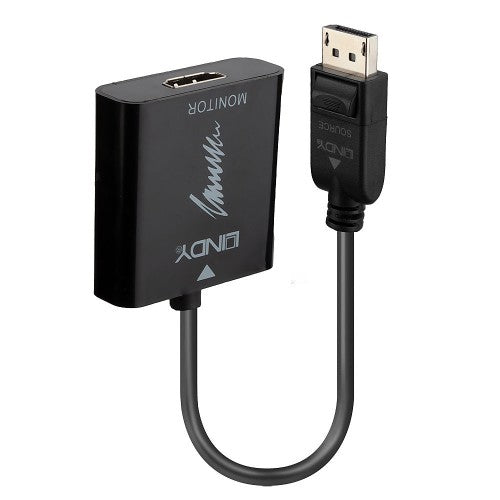

DisplayPort 1.2 to HDMI 2.0 18G Active Converter
HDCP 2.2 ensures issue-free playback of a variety of 4K Ultra HD movies, TV shows and other 4K content as well as existing Full HD signals.

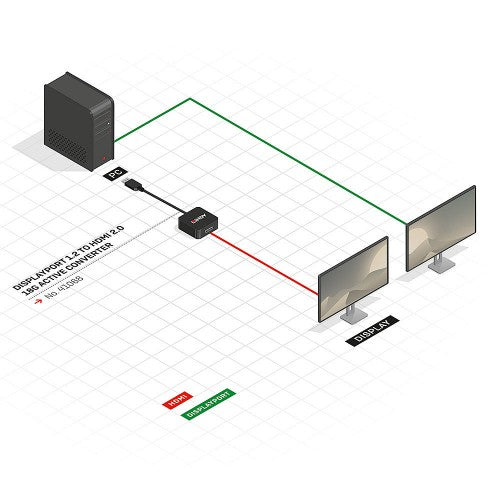

Active conversion guarantees compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage, great for an immersive gaming setup or a productive multi-screen working experience.
Key Features

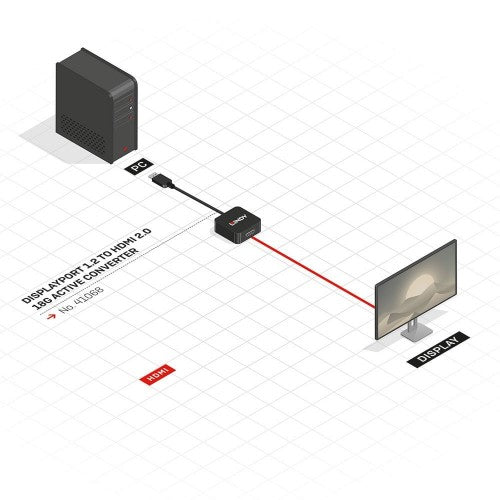

- Connect a DisplayPort computer to an HDMI 4k display
- Supports resolutions up to 3840x2160@60Hz
- Audio pass-through if supported by the video source
- Active chipset for enhanced compatibility with various graphic cards
- 2 year warranty
Description
The Lindy DisplayPort to HDMI Converter is a high performance solution that allows a DisplayPort source device to be connected to a HDMI display or projector. It supports full 4K Ultra HD resolutions up to 3840x2160@60Hz 4:4:4 8bit and HDMI 2.0 with up to 18Gbps bandwidth, making it the ideal tool for high-resolution tasks like editing 4K videos.HDCP 2.2 ensures issue-free playback of a variety of 4K Ultra HD movies, TV shows and other 4K content as well as existing Full HD signals.
Active conversion guarantees compatibility with various graphics cards including AMD Eyefinity, NVIDIA surround and Intel Collage, great for an immersive gaming setup or a productive multi-screen working experience.
Specifications
| Features | |
|---|---|
| Converter type | Active video converter |
| Chipset | PS176 |
| Colour depth | 8 bit |
| HDMI version | 2.0a |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 1.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector contacts plating | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| HDCP | Yes |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDCP version | 2.2 |
| Colour sampling | 4:4:4 |
| Bend radius (min) | 5.5 cm |
| Connector housing material | Thermoplastic elastomer (TPE) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Weight | 20 g |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package weight | 45 g |
| Connector 1 dimensions (WxDxH) | 31.5 x 20 x 9 mm |
| Connector 2 dimensions (WxDxH) | 45 x 45 x 15 mm |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 160 mm |
| Package height | 20 mm |
| Package type | Polybag |
| Package weight | 45 g |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
