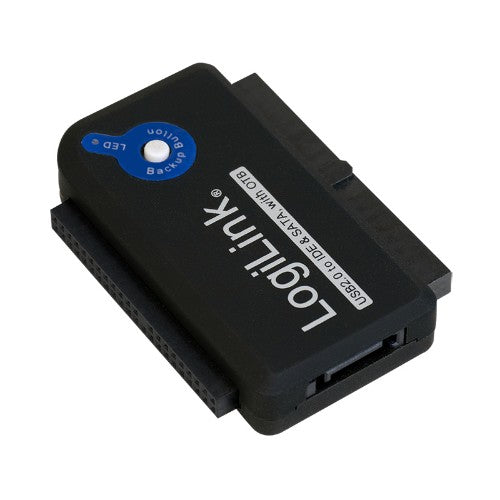

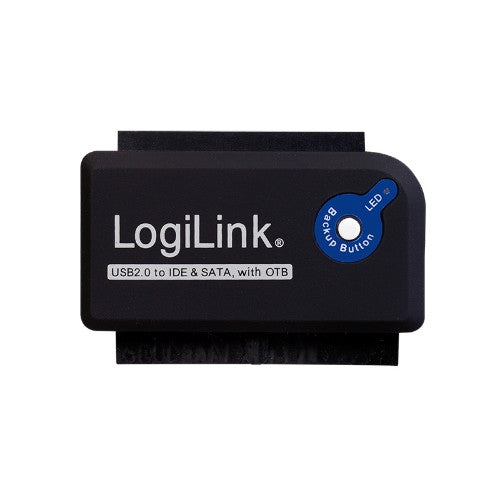

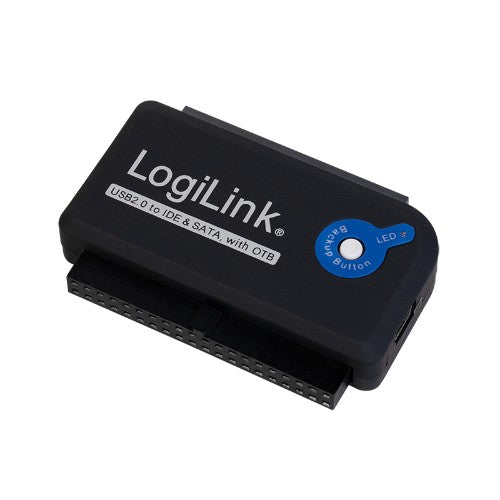

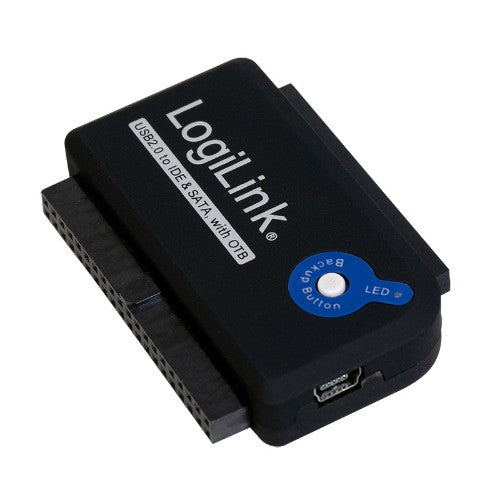

Adapter USB 2.0 to 2.5" + 3.5" IDE + SATA HDD OTB
Key Features
- USB 2.0 to IDE & SATA Adapter
- Computer Connection: USB (Type A) male
- Connector 1: 3.5" HDD / 40-pin female
- Connector 2: 2.5" HDD / 44-pin female
- Connector 3: SATA connector
- Max. transfer rate: 480 Mbit/s
- One Touch Backup (OTB) function
- Also supports CD-ROM and DVD drives
- Cable length: 1.2 m, incl. 5.25" power cable, SATA cable
- Suitable for Win10
Description

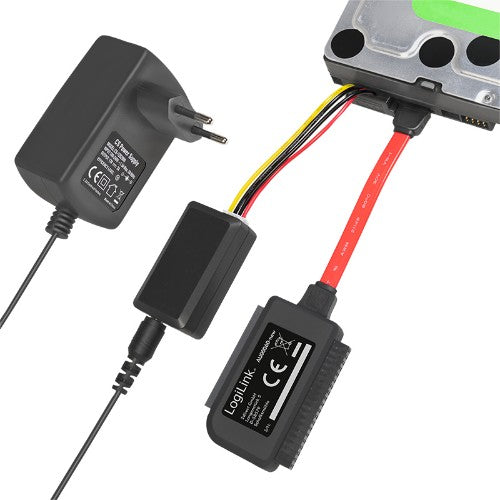

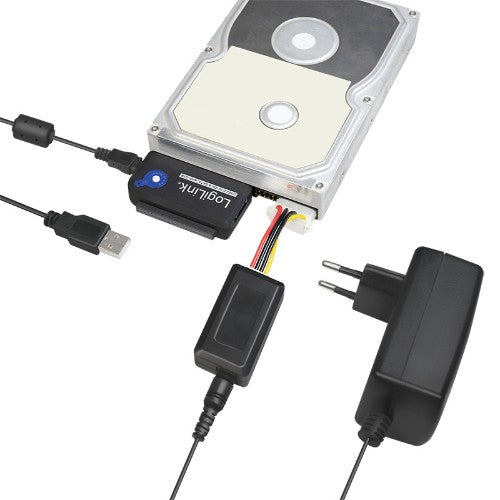

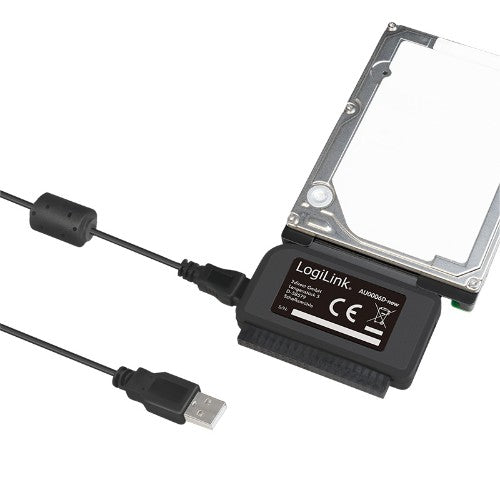

With this LogiLink adapter you can connect SATA, IDE hard drives and ATAPI drives with the USB 2.0 port on your computer. The adapter has a 2.5 and 3.5 inch IDE and S-ATA hard disk connector matching the outlet. The necessary cables, adapters and power supply are included. The One Touch Backup function (OTB) data can be secured with a push of a button.
Specifications
| Ports & interfaces |
|---|
| Internal |
No |
| Output interface |
IDE/ATA, SATA |
| USB 2.0 ports quantity |
1 |
| Host interface |
USB Type-A |
| Technical details |
|---|
| Purpose |
PC |
| Data transfer rate (max) |
0.48 Gbit/s |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Performance |
|---|
| Maximum cable length |
1.2 m |
| Purpose |
PC |
| Data transfer rate (max) |
0.48 Gbit/s |
| Product colour |
Black |
| Colour |
|---|
| Product colour |
Black |
| Design |
|---|
| Maximum cable length |
1.2 m |
| Country of origin |
China |
| Purpose |
PC |
| Internal |
No |
| Product colour |
Black |
| LED indicators |
Yes |
| Features |
|---|
| Data transfer rate (max) |
0.48 Gbit/s |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Power |
|---|
| External power adapter |
Yes |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10 |
| Mac operating systems supported |
Yes |
| Packaging content |
|---|
| Packaging content |

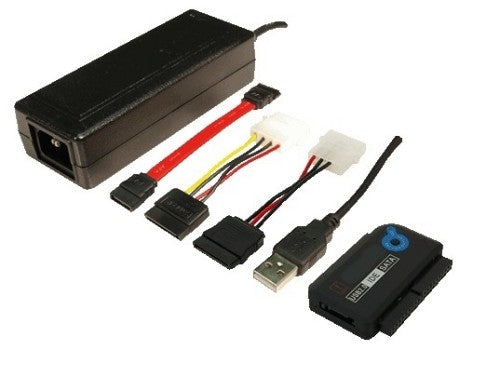

1 x USB 2.0 to SATA & IDE Adapter, 1 x SATA Connection Cable, 1 x Power Adapter for 5.25“ to 2.5“ SATA Power, 1 x Power Adapter for 5.25“ to 3.5“ SATA Power |
| Manual |
Yes |
| Package type |
Box |
| Cables included |
SATA, USB |
| Quantity |
1 |
| Packaging data |
|---|
| Manual |
Yes |
| Package type |
Box |
| Package width |
140 mm |
| Package depth |
70 mm |
| Package height |
180 mm |
| Package weight |
330 g |
| Cables included |
SATA, USB |
| Quantity |
1 |
| Power supply included |
Yes |
| Other features |
|---|
| Packaging content |
1 x USB 2.0 to SATA & IDE Adapter, 1 x SATA Connection Cable, 1 x Power Adapter for 5.25“ to 2.5“ SATA Power, 1 x Power Adapter for 5.25“ to 3.5“ SATA Power |
| Weight & dimensions |
|---|
| Package width |
140 mm |
| Package depth |
70 mm |
| Package height |
180 mm |
| Package weight |
330 g |
