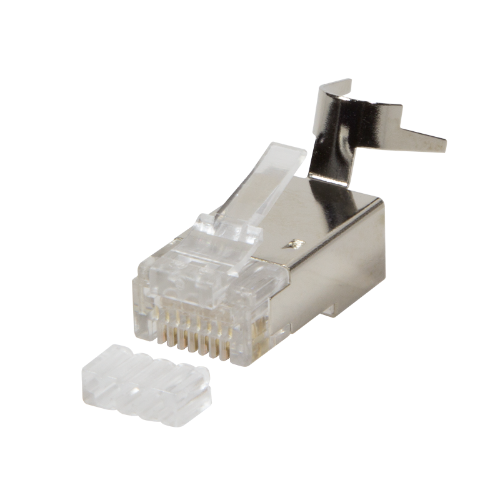

RJ45 modular plug, Cat.8.1/Cat.6A, shielded, 10 pcs.
Key Features
- RJ45 plug for Cat6A, Cat7, Cat7A & Cat.8.1 cable
- Shielded housing, gold plated pins, 50µin
- Suitable for solid or stranded copper wire
- For AWG22 - AWG24 wire (1,2 – 1,45 mm with insulation)
- Outer cable jacket OD max. 8 mm
- Set with 10pcs. incl. plug and guide plate
- With cable clip for strain relief
- Suitable for Cat.6A and Cat.7 solid cable
- Compliant to UL1863 standard
Description
LogiLink’s shielded RJ45 plug for data transfer up 10 Gbps is suitable for stranded and solid Cat.6, Cat.6A, Cat.7 and Cat.7A cable. It includes strain relief clamp and wire guide plate for easy wire installing. The connection of crimp contacts, strain relief and shield is done in one step by using a specific crimp tool for Hirose Cat.6 and Cat.6A plugs.
Specifications
| Features |
|---|
| Connector(s) |
RJ45 |
| Connector contacts plating |
Gold |
| Packaging data |
|---|
| Quantity per pack |
10 pc(s) |
| Technical details |
|---|
| Connector(s) |
RJ45 |
| Connector contacts plating |
Gold |
| Packaging content |
|---|
| Quantity per pack |
10 pc(s) |
