Description
Key Features
- Includes all cabling, power supply, and adapters to connect Logitech Tap to a meeting room computer
- Standard Cat5e cabling supplies USB data and power to Logitech Tap
- Option to use the included 10 metres of cable or supply your own Cat5e cabling for runs of up to 40 metres
- Compatible with Table Mount, Riser Mount, and Wall Mount for Logitech Tap
Description

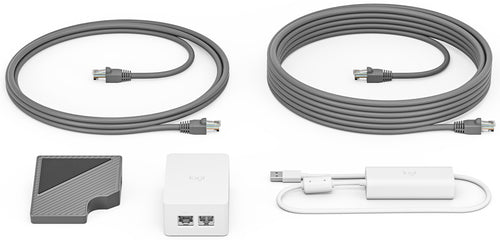

Logitech Cat5E Kit For Logitech Tap
Data and power over category cable.
Simplified Cabling For Logitech Tap
Now you can locate Logitech Tap nearly anywhere in your meeting rooms. With the Cat5e Kit connect Tap up to 40 meters away from the meeting room computer with data and power carried over category cable.
Data Meets Power
When connected to the meeting room computer with a USB cable Tap needs its own power supply. But since the Cat5e Kit delivers both power and data over category cable there's no need to find an outlet at the table.
Flexible Cabling
Use the 10 meters of cable included with the Cat5e Kit or supply your own cabling for runs of up to 40 meters. Cat5e allows for precise cable lengths reducing clutter beneath tables.
Compatible With all Tap Mounts
Designed specifically for Logitech Tap the Cat5e Kit works with the Table Riser and Wall Mounts keeping cables out of the way and hidden from view.
Specifications
| Performance | |
|---|---|
| Product colour | White |
| Technical details | |
| Product colour | White |
| Harmonized System (HS) code | 85044095 |
| System requirements | |
| Minimum system requirements | MEETING ROOM EQUIPMENT Touch Controller: Logitech Tap Meeting Room Computer: Windows 10 64-bit or Chrome OS 80 or higher with USB 2.0 port or higher CABLING Cable Type: Cat5e or higher (up to 40 metres in total length) |
| Features | |
| Maximum operating distance | 40 m |
| Logistics data | |
| Master (outer) case width | 269 mm |
| Master (outer) case gross weight | 6.51 kg |
| Master (outer) case length | 347 mm |
| Master (outer) case height | 244 mm |
| Harmonized System (HS) code | 85044095 |
| Computer system | |
| Windows operating systems supported | Yes |
| Minimum system requirements | MEETING ROOM EQUIPMENT Touch Controller: Logitech Tap Meeting Room Computer: Windows 10 64-bit or Chrome OS 80 or higher with USB 2.0 port or higher CABLING Cable Type: Cat5e or higher (up to 40 metres in total length) |
| Power | |
| Power source type | AC |
| Weight & dimensions | |
| Width | 83 mm |
| Depth | 85 mm |
| Height | 29 mm |
| Package width | 227 mm |
| Package depth | 337 mm |
| Package height | 43.5 mm |
| Package weight | 1.03 kg |
| Packaging data | |
| Package width | 227 mm |
| Package depth | 337 mm |
| Package height | 43.5 mm |
| Package weight | 1.03 kg |
| Packaging content | |
| Packaging content | Logitech Tap Receiver Dongle Transceiver 100-240v Power Supply with International International Adaptor Set 2.97 m Cat5e Cable 7.0 m Cat5e Cable Documentation |
| Batteries included | No |
| AC adapter included | Yes |
