Logitech Rally Bar Mini

Rally Bar Mini

Key Features

• Logitech extended guarantee adds one year to the original manufacturer's guarantee which provides that your Logitech Rally Bar Mini hardware shall be free from defects in material and workmanship.
• The purchase of a one year Logitech extended guarantee, at the time of hardware or room solution purchase, adds one additional year to the original Logitech manufacturer's two year limited hardware guarantee.
• Logitech one year extended guarantee is intended to ensure that your Logitech hardware shall be free from defects in material and workmanship for a total of three years.
• The Logitech extended guarantee provides an additional year of coverage that helps protect your investment, maximise its value, and ensure optimal performance of your Logitech conference room hardware.
• A three year guarantee is right in line with the typical depreciation and replacement cycle of most conference room equipment.

Description

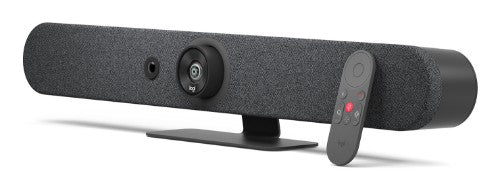

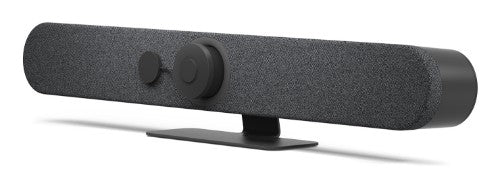

Logitech Rally Bar Mini

Logitech Rally Bar Mini is an all-in-one video bar for small to medium meeting rooms. Discover remarkably simple all-in-one video conferencing with built-in AI technology brilliant optics and powerful audio.

ALL-IN-ONE VIDEO BAR FOR SMALL AND MEDIUM ROOMS
Uncover an exceptionally straightforward video conferencing solution featuring outstanding optics AI-driven audio enhancements seamless remote management through Logitech Sync and additional advanced features.

EXPAND THE CONVERSATION
Add up to three Rally Mic Pods to extend the audio pick up range and provide convenient access to mute controls.

EVERYONE IS SEEN AND HEARD
AI video intelligence advanced sound pickup noise suppression and continuous software improvements provide a clear and natural meeting experience for remote workers.

MANAGE REMOTELY WITH SYNC
Monitor room and device health deploy updates and modify settings all from a single cloud-based platform.

A CHOICE YOU WILL FEEL GOOD ABOUT
Logitech is committed to creating a more sustainable world. We are actively working to minimize our environmental footprint and accelerate the pace of social change.

ENSURE BUSINESS CONTINUITY WITH SELECT SERVICE PLAN
Remove barriers to collaboration and ensure conference rooms are ready for the next meeting. Select is a service plan beneficial for all room sizes and deployments. Optimize uptime with expert assistance within one hour get fast product replacements and take advantage of premium Sync functionality to proactively resolve issues before they impact your business. When you choose Select we partner with you to reduce daily management optimize performance and help you maximize your investment.

Compatibility
• Internet Connection: Wired or wireless
• USB Mode: Windows 11 Windows 10 the two most recent versions of macOS
• Appliance Mode: Room solution software license (not included)

In the Box
• Rally Bar Mini
• Power supply
• AC power cord
• HDMI cable
• USB cable
• Remote control
• Lens caps for main lens and AI Viewfinder
• User documentation

Features
Dimensions W x D x H	719 x 101 x 91.4 mm
Weight	4.03 Kg
Colour	Graphite
Warranty	2 year return to base

Specifications

Performance
Product type	Group video conferencing system
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Product colour	Graphite
PTZ control	Yes
Technical details
Product type	Group video conferencing system
Tilt angle range	-15 - 15°
Pan range	-25 - 25°
Product colour	Graphite
PTZ control	Yes
Harmonized System (HS) code	85176990
Video
HD type	4K Ultra HD
Digital zoom	4x
Supported video modes	576p, 720p, 900p, 1440p, 2160p
Maximum frame rate	30 fps
Audio
Microphone pick-up range	4.5 m
Output level	92/99 dB
Line-out impedance	4 Ω
Output voltage Total Harmonic Distortion (THD)	2%
RMS rated power	8 W
Noise reduction	Yes
Echo cancellation	Yes
Built-in speaker(s)	Yes
Sample rates	0 - 48 kHz
Audio beamforming	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB connector type	USB Type-A, USB Type-C
DC-in jack	Yes
Microphone in	Yes
HDMI ports quantity	3
HDMI output ports quantity	2
HDMI input ports quantity	1
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols	IPv4, IPv6
Security algorithms	128-bit AES
Camera
Horizontal field of view	113°
Remote control interface	Bluetooth
Digital zoom	4x
Vertical field of view	80.7°
Diagonal field of view	120°
Zoom capability	Yes
Microphone
Microphone sensitivity	-36 dB
Microphone frequency	90 - 16000 Hz
Microphone direction type	Omnidirectional
Number of microphones	6
Sound pressure level (max)	90 dB
System requirements
Minimum system requirements	Internet Connection: Wired or wireless USB Mode: Windows 11, Windows 10, the two most recent versions of macOS Appliance Mode: Room solution software licence (not included)
Security
Security algorithms	128-bit AES
Battery
Battery capacity	0.675 Wh
Features
Telepresence	No
Logistics data
Master (outer) case width	300 mm
Master (outer) case gross weight	4.73 kg
Master (outer) case length	330 mm
Master (outer) case height	160 mm
Harmonized System (HS) code	85176990
Computer system
Windows operating systems supported	Yes
Mac operating systems supported	MacOS
Minimum system requirements	Internet Connection: Wired or wireless USB Mode: Windows 11, Windows 10, the two most recent versions of macOS Appliance Mode: Room solution software licence (not included)
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95%
Heat dissipation	64 BTU/h
Power
DC input voltage	19 V
AC input voltage	100 - 240 V
Current	4.754 A
Power source type	AC
Power plug type	Type G
Number of batteries supported	1
Battery technology	Lithium
Battery capacity	220 mAh
Weight & dimensions
Width	719 mm
Depth	101 mm
Height	91.4 mm
Weight	4.03 kg
Package width	191 mm
Package depth	789 mm
Package height	199 mm
Package weight	5.8 kg
Packaging data
Package width	191 mm
Package depth	789 mm
Package height	199 mm
Package weight	5.8 kg
Packaging content
Remote control included	Yes
Packaging content	Rally Bar Mini Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main lens and AI Viewfinder User documentation
Cables included	AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length	2.5 m
HDMI cable length	2 m
Batteries included	Yes
AC adapter included	Yes
Quick start guide	Yes
