Description
LoopMeeting LM1056T - LED, POE, Touch
The panel is at all times able to show:
- Who booked the room
- Subject of meeting
- How long the room is taken or available
- When the next meeting starts
- Show all meetings one week in advance
- Confirm/Check into meeting
- Report issues with room equipment
- See status of other rooms nearby and book if they are available
Use LoopMeeting to streamline and utilize your meeting rooms’ capacity in a simple way.
Run Loopsign digital signage as a background on the panel.
for more information see: loop24.no/loopmeeting
Key Features
- Supports MS365, Google Workspace, LoopBooking, Nexudus, Exchange
- LAN (POE)
- Wifi
- Android 13
- Wall/Glass mount
- NFC
- Perpetual license (Lifetime, no annual cost)
Description
Meeting room panel where you can book, cancel and extend meetings directly on the panel.The panel is at all times able to show:
- Who booked the room
- Subject of meeting
- How long the room is taken or available
- When the next meeting starts
- Show all meetings one week in advance
- Confirm/Check into meeting
- Report issues with room equipment
- See status of other rooms nearby and book if they are available
Use LoopMeeting to streamline and utilize your meeting rooms’ capacity in a simple way.
Run Loopsign digital signage as a background on the panel.
for more information see: loop24.no/loopmeeting
Specifications
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display technology | LED |
| Display resolution | 1280 x 800 pixels |
| Aspect ratio | 16:10 |
| Display surface | Gloss |
| LED backlight | Yes |
| Viewing angle | 85° |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Number of simultaneous touchpoints | 10 |
| Design | |
| Housing colour | Black |
| Housing material | Polycarbonate (PC) |
| Certification | CE |

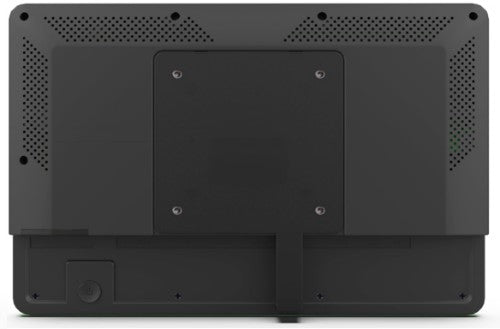

| VESA mounting | Yes |
| USB port type | USB Type-A |
| USB port | Yes |
| Performance | |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor cores | 4 |
| RAM capacity | 2 GB |
| Storage capacity | 16000 MB |
| Operating system installed | Android 13.0 |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Camera | |
| Built-in camera | No |
| Network | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| Bluetooth | Yes |
| Security algorithms | HTTPS, TLS |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Firmware upgradeable | No |
| Near Field Communication (NFC) | Yes |
| Ports & interfaces | |
| USB port type | USB Type-A |
| USB port | Yes |
| RJ-45 ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 2 |
| RFID reader | Yes |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Power | |
| Power source type | AC, PoE |
| Power over Ethernet (PoE) type supported | PoE+, PoE++ (4PPoE) |
| Power consumption (max) | 25 W |
| Power consumption (idle) | 10 W |
| Power consumption (average) | 12 W |

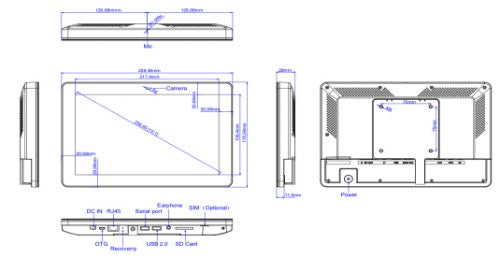

| Weight & dimensions | |
| Width | 260 mm |
| Depth | 28 mm |
| Height | 178 mm |
| Weight | 1 kg |
| Packaging data | |
| Package width | 305 mm |
| Package depth | 80 mm |
| Package height | 200 mm |
| Package weight | 1.6 kg |
| Package type | Box |
| Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
| Cables included | AC |
| Mounting bracket(s) included | Yes |
| Packaging content | Mounting kit both for wall and glass |
| Technical details | |
| Warranty period | 2 year(s) |
| Features | |
| Built-in speaker(s) | Yes |
