Description

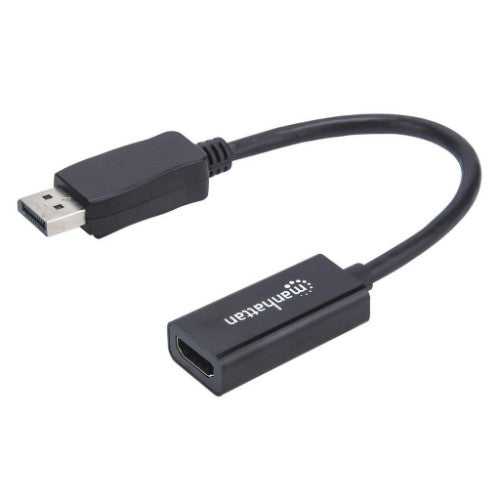

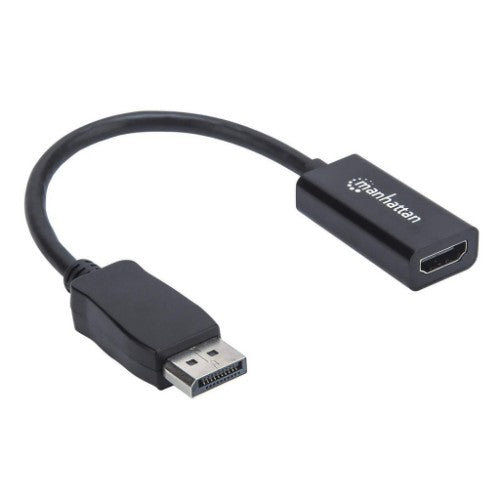

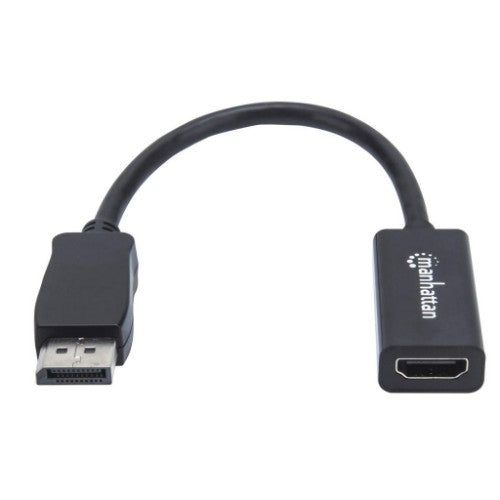

DisplayPort 1.1 to HDMI Adapter Cable, 1080p@60Hz, Male to Female, Black, Cable 15cm, DP With Latch, Not Bi-Directional, Three Year Warranty, Equivalent to DP2HDMI
The Manhattan Passive DisplayPort to HDMI Adapter establishes a fast, simple and convenient link between newer DisplayPort-equipped sources and existing HDMI displays. This passive adapter requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD display. The adapter is easy and quick to install and requires no complicated configuration or setup. The Manhattan Passive DisplayPort to HDMI Cable Adapter is sure to help users fully realise the investment, value and service life of HDMI displays. It offers a passive, compact and integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces orderly.
Key Features
- Converts a DisplayPort signal to an HDMI signal
- Supports Deep colour, high-bandwidth 10.8 Gbps applications and HD resolutions at 1080p (1920x1200p)
- Delivers a high-quality digital video signal — perfect for connecting a new DisplayPort source to an existing HDMI display
- Passive adapter requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD monitor, projector and more
- Integrated design simplifies and eliminates cable tangles; latching connector ensures secure connection
- Easy installation; Plug and Play
- Three-year warranty
Description
Easily connect a DisplayPort source to an HDMI display.The Manhattan Passive DisplayPort to HDMI Adapter establishes a fast, simple and convenient link between newer DisplayPort-equipped sources and existing HDMI displays. This passive adapter requires DP++ (dual-mode) video/graphics cards to regenerate the signal and ensure the best connection to an HD display. The adapter is easy and quick to install and requires no complicated configuration or setup. The Manhattan Passive DisplayPort to HDMI Cable Adapter is sure to help users fully realise the investment, value and service life of HDMI displays. It offers a passive, compact and integrated solution that eliminates unnecessary cables, tangles and clutter to keep installations and workspaces orderly.
Specifications
| Features | |
|---|---|
| DisplayPort version | 1.1 |
| Product colour | Black |
| Cable length | 0.15 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | DisplayPort |
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Certification | UL 20276 FCC CE HDCP |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
| Certification | UL 20276 FCC CE HDCP |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Other features | |
| Width | 22 mm |
| Height | 14 mm |
| Depth | 200 mm |
| Weight & dimensions | |
| Width | 22 mm |
| Height | 14 mm |
| Depth | 200 mm |
| Weight | 51 g |
| Packaging data | |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Packaging content | |
| Package type | Polybag |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
