Description

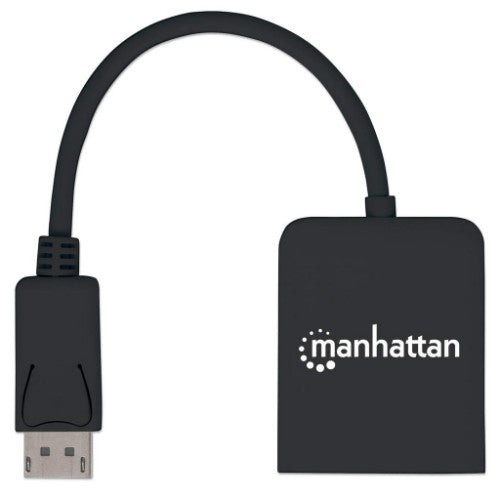

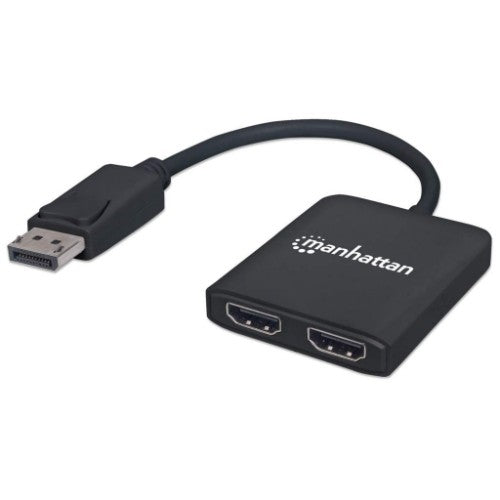

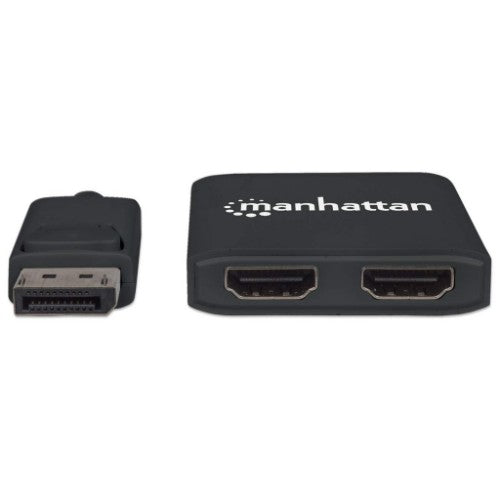

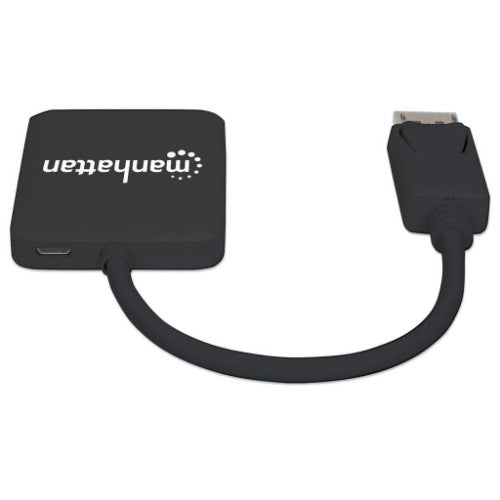

DisplayPort 1.2 to 2-Port HDMI Splitter Hub with MST, 4K@30Hz, USB-A Powered, Video Wall Function, HDCP 2.2, Black, MST = Multi-Stream Transport, 3 Year Warranty
The Manhattan DisplayPort to Dual HDMI - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual HDMI - MST Hub features a built-in booster for added signal strength. It's a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual HDMI - MST Hub can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete - no software/hardware configuration or complicated settings required.
Key Features
- Duplicates an Ultra-High-Definition (UHD) DisplayPort (DP) signal for up to two UHD HDMI displays
- 4K@30Hz resolution, full 3D video and Deep colour
- Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
- Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
- Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K@30Hz
- Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K@30Hz
- MST mode creates a video wall for a more immersive experience, using two screens — with resolutions up to 3840x2160 at 30 Hz — as one; requires a graphics card that supports video-wall function
- USB powered with Plug and Play installation; no special setup or remote required
- Integrated DisplayPort cable
- Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets; perfect for digital signage and AMD Eyefinity Technology in gaming
- HDCP 2.2 compliant
- Gold-plated contacts for corrosion-free connections
- Three-Year Warranty
Description
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.The Manhattan DisplayPort to Dual HDMI - MST Hub streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan DisplayPort to Dual HDMI - MST Hub features a built-in booster for added signal strength. It's a great choice for splitting and distributing a synchronous signal, in either mirrored or extended modes, to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming, in a conference setting or in a home office.
Quality Construction and Easy Installation
Full compliance with DisplayPort, HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to Dual HDMI - MST Hub can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable, and this affordable, Ultra-High-Definition 4K DisplayPort/HDMI solution is complete - no software/hardware configuration or complicated settings required.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | DisplayPort |
| Video out | 2x HDMI |
| DC-in jack | Yes |
| Connector contacts plating | Gold |
| Cable length | 1 m |
| Features | |
| Housing material | Plastic |
| Windows operating systems supported | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Product colour | Black |
| Certification | DVI 1.0 CTS 1.4a CE FCC RoHS2 |
| 3D | Yes |
| Connector contacts plating | Gold |
| Cable length | 1 m |
| Power | |
| Input current | 2 A |
| USB powered | Yes |
| AC input voltage | 5 V |
| Weight & dimensions | |
| Weight | 50 g |
| Width | 50 mm |
| Depth | 255 mm |
| Height | 11 mm |
| Packaging content | |
| Manual | Yes |
| Cables included | Micro-USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| 3D | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | DVI 1.0 CTS 1.4a CE FCC RoHS2 |
| Technical details | |
| Housing material | Plastic |
| Video out | 2x HDMI |
| Compliance certificates | RoHS |
| System requirements | |
| Windows operating systems supported | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
