Description
HDMI Switch 2-Port, 1080p, Connects x2 HDMI sources to x1 display, Manual Switching (via button), Integrated Cable (50cm), No external power required, Black, Three Year Warranty

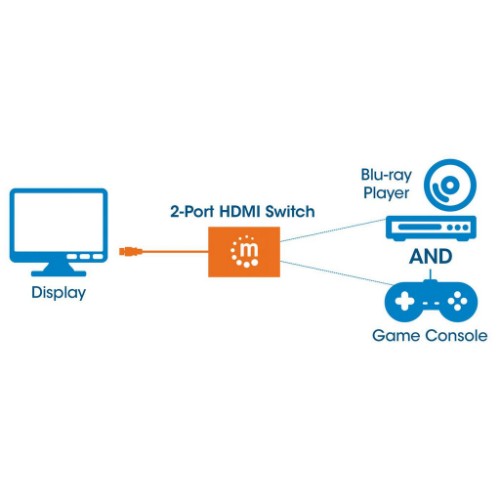

The Manhattan 1080p 2-Port HDMI Switch allows media enthusiasts to connect two HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to a single high-definition display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 1080p 2-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, its manual selection button allows users to select sources when more than one HD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 1.0 and 1.1 ensures that the Manhattan 1080p 2-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Key Features
- Connects two HD video sources to a single HDMI display

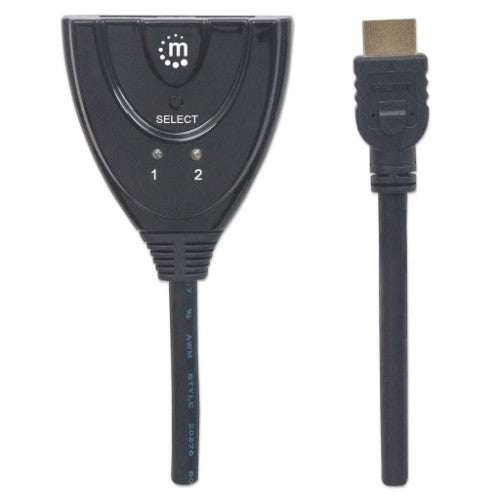

- Manual switching with the push of a button
- 1080p resolution, 3D, Deep colour
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- HDCP compliant
- Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
- Supports 3D video and 8-bit (24-bits total) Deep colour
- Supports video amplifier bandwidth up to 2.25 Gbps for a 1080p display
- Plug-and-Play
- Plug and play: no special setup, power or remote requirements

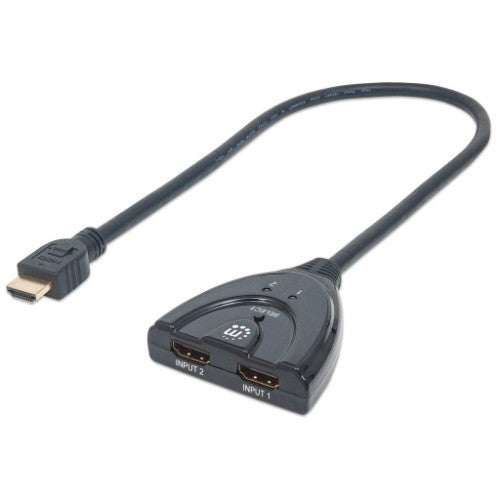

- Integrated HDMI cable
- Gold-plated contacts
- Gold-plated contacts for corrosion-free connections
- Three-year warranty
Description
Easily connect multiple HDMI sources to a single display.The Manhattan 1080p 2-Port HDMI Switch allows media enthusiasts to connect two HDMI video sources - including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices - to a single high-definition display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 1080p 2-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, its manual selection button allows users to select sources when more than one HD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 1.0 and 1.1 ensures that the Manhattan 1080p 2-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.
Specifications
| Ports & interfaces | |
|---|---|
| Video ports quantity | 2 |
| Video port type | HDMI |
| Video out | 2x HDMI |
| HDMI version | 1.3b |
| Connector contacts plating | Gold |
| Cable length | 0.5 m |
| Features | |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Colour depth | 24 bit |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Product colour | Black |
| Certification | CE, FCC |
| 3D | Yes |
| Connector contacts plating | Gold |
| Bandwidth | 250 MHz |
| Cable length | 0.5 m |
| HD type | Full HD |
| Weight & dimensions | |
| Weight | 70 g |
| Width | 60 mm |
| Depth | 69 mm |
| Height | 17 mm |
| Packaging content | |
| Manual | Yes |
| Video | |
| Colour depth | 24 bit |
| Maximum resolution | 1920 x 1080 pixels |
| HDCP | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | Yes |
| Bandwidth | 250 MHz |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Technical details | |
| Dolby technologies | DTS, DTS-HD Master Audio, Dolby TrueHD |
| Video out | 2x HDMI |
| HDMI version | 1.3b |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
