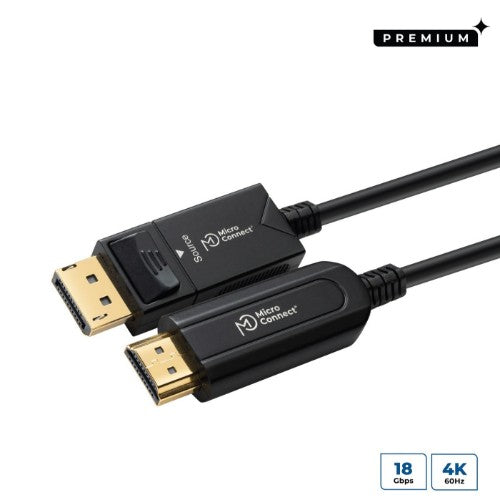

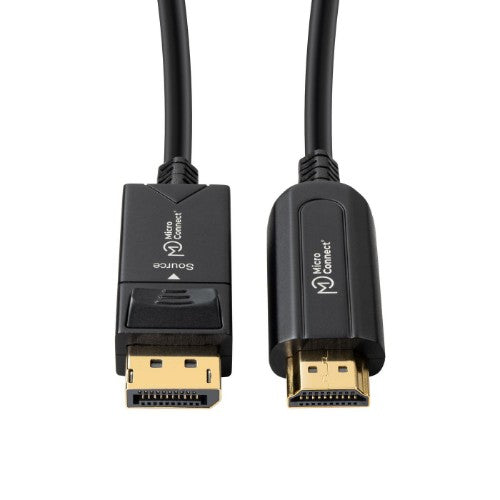

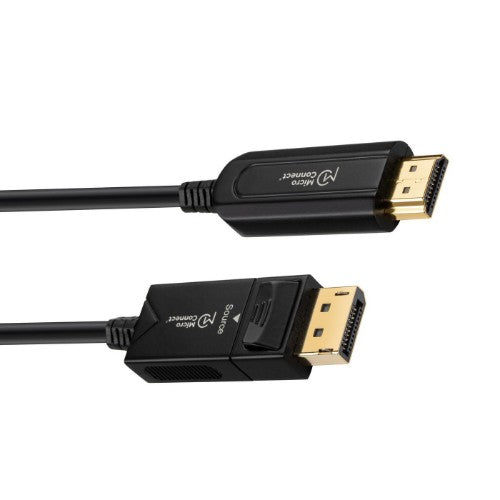

Premium Optic Fiber DisplayPort 1.4 - HDMI 2.0 Cable, 20m
See the full Premium Assortment at the following link: https://www.eetgroup.com/inspiration/microconnect-premium
This active optical DisplayPort 1.4 to HDMI 2.0 cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has a ultra-small bend radius which makes it perfectly suitable for all kinds of installations.
Key Features
- Supporting 4K60Hz, 18Gbps
- Sampling : YUV 4:4:4
- Outer Diameter: 4,5mm, very flexible
- Compatible with HDMI 2.0 standard
- Supports EDID, HDCP (2.2), HDR (High Dynamic Range ), HEC, ARC
- Hybrid optical cable with fibre and copper wire
- Has Source & Display clearly printed on the connector for easy identification
- No loss of signal – delivering crystal clear digital images instantly
- Low RFI / EMI profile for sensitive applications
- Self-detecting function for EDID information
- DisplayPort : Source / HDMI: Display
Description
Premium is a series of high-quality products within the MicroConnect brand, designed with premium materials, reliable performance, and a sharp modern design for professional connectivity solutions.See the full Premium Assortment at the following link: https://www.eetgroup.com/inspiration/microconnect-premium
This active optical DisplayPort 1.4 to HDMI 2.0 cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has a ultra-small bend radius which makes it perfectly suitable for all kinds of installations.
Specifications
| Features | |
|---|---|
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Cable length | 20 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate | 18 Gbit/s |
| Bandwidth | 18000 MB/s |
| 3D | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported video modes | 480p |
| Plug and Play | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Weight & dimensions | |
| Weight | 600 g |
| Package width | 239 mm |
| Package depth | 228 mm |
| Package height | 43 mm |
| Package weight | 644 g |
| Packaging data | |
| Package width | 239 mm |
| Package depth | 228 mm |
| Package height | 43 mm |
| Package weight | 644 g |
