Description

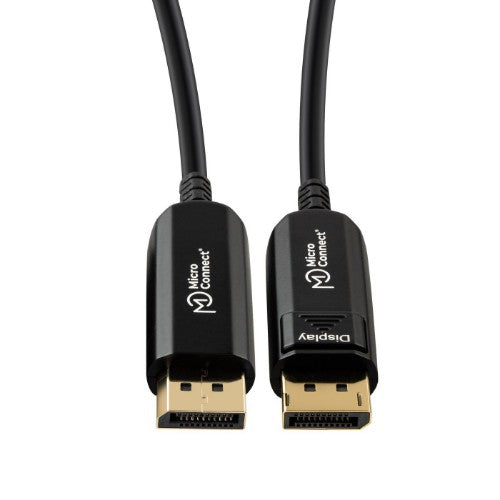

Premium Optic Fiber DisplayPort 1.4 Cable, 25m
https://www.eetgroup.com/en-zz/campaigns/microconnect-premium
This active optical DisplayPort 1.4 cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations.
Key Features
- Supporting 8K60Hz, 32.4Gbps
- Sampling : YUV 4:4:4
- Outer Diameter: 4,8mm, very flexible
- Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
- Supports EDID, HDCP (2.2), HDR (High Dynamic Range ), HBR3
- Hybrid optical cable with fibre and copper wire
- Has Source & Display clearly printed on the connector for easy identification
- No loss of signal – delivering crystal clear digital images instantly
- Low RFI / EMI profile for sensitive applications
- Has high pulling strength and compression load
Description
See the full Premium Assortment at the following link:https://www.eetgroup.com/en-zz/campaigns/microconnect-premium
This active optical DisplayPort 1.4 cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations.
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 25 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| Jacket material | Polyvinyl chloride (PVC) |
| DisplayPort version | 1.4 |
| Data transfer rate | 32.4 Gbit/s |
| 3D | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 720 g |
| Package weight | 1.22 kg |
| Package width | 239 mm |
| Package depth | 229 mm |
| Package height | 81 mm |
| Packaging data | |
| Cable diameter | 4.8 mm |
| Package weight | 1.22 kg |
| Weight | 720 g |
| Package width | 239 mm |
| Package depth | 229 mm |
| Package height | 81 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
