Description
Premium Optic Fiber Mini DisplayPort 1.4 to DisplayPort Cable, 50m
https://www.eetgroup.com/en-zz/campaigns/microconnect-premium

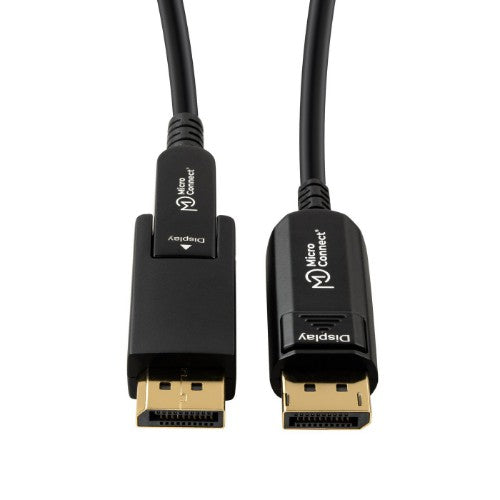

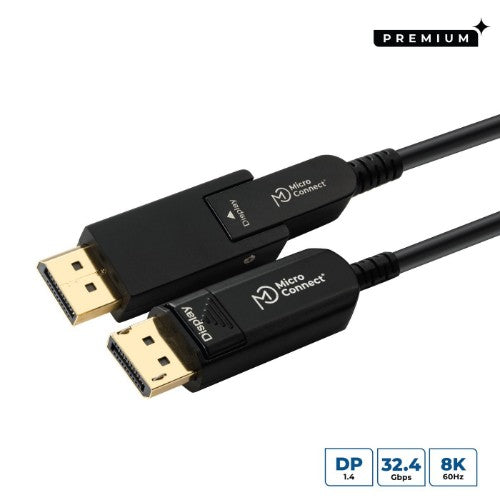

This active optical Mini DisplayPort – DisplayPort 1.4 Cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations. This cable also comes with an additional DisplayPort adapter, which makes it possible to use it also as a DisplayPort Male to DisplayPort male cable if needed.
Key Features
- Supporting 8K60Hz, 32.4Gbps
- Sampling : YUV 4:4:4
- Outer Diameter: 4,8mm, very flexible
- Support DP1.4 standard, bandwidth can reach 8.1 Gbps per channel
- Supports EDID, HDCP (2.2), HDR (High Dynamic Range ), HBR3
- Hybrid optical cable with fibre and copper wire
- Has Source & Display clearly printed on the connector for easy identification
- No loss of signal – delivering crystal clear digital images instantly
- Low RFI / EMI profile for sensitive applications
- Has high pulling strength and compression load
- as an extra feature it comes with a DisplayPort adapter, which enables you to use it from a DisplayPort source to a DisplayPort monitor.
Description
See the full Premium Assortment at the following link:https://www.eetgroup.com/en-zz/campaigns/microconnect-premium
This active optical Mini DisplayPort – DisplayPort 1.4 Cable connects devices across long distances up to 100m without data loss – even in sensitive applications. It contains both fiber optic and copper cores, it is lightweight, flexible and has an ultra-small bend radius which makes it perfectly suitable for all kinds of installations. This cable also comes with an additional DisplayPort adapter, which makes it possible to use it also as a DisplayPort Male to DisplayPort male cable if needed.
Specifications
| Features | |
|---|---|
| Latching connectors | Yes |
| DisplayPort Content Protection (DPCP) | Yes |
| Product colour | Black |
| Cable length | 50 m |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Cable material | Fiber optic |
| Jacket material | Polyvinyl chloride (PVC) |
| DisplayPort version | 1.4 |
| Data transfer rate | 32.4 Gbit/s |
| 3D | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Weight & dimensions | |
| Cable diameter | 4.8 mm |
| Weight | 1.5 kg |
| Package weight | 2.18 kg |
| Package width | 290 mm |
| Package depth | 281 mm |
| Package height | 77 mm |
| Packaging data | |
| Cable diameter | 4.8 mm |
| Package weight | 2.18 kg |
| Weight | 1.5 kg |
| Package width | 290 mm |
| Package depth | 281 mm |
| Package height | 77 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
