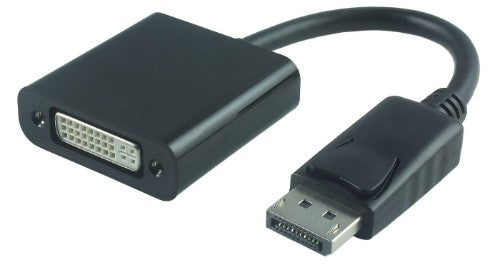

Displayport 1.2 to DVI-I Adapter
Key Features
- Max resolution: Full HD 1920*1080p@60Hz
- Displayport to DVI
- Cable Length 15 cm
- Passive
- Plug and play: With full support for plug-and-play installation, this PC video adapter is easy to setup with no software, drivers or external power adapter required
- Plug with lock for secure connections
- Support DP 1.2, downward compatible with 1.1
Description
This MicroConnect Displayport to DVI adapter allows you to display content from a device with Displayport output to a monitor/Projector with a DVI input. It is perfect for video streams, gaming or extending the workplace.
Specifications
| Features |
|---|
| DisplayPort version |
1.2 |
| Product colour |
Black |
| Bandwidth |
225 MHz |
| Cable length |
0.15 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DVI-I |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Connector contacts plating |
Nickel |
| Cable material |
Copper |
| AWG wire size |
28 |
| Data transfer rate |
10.2 Gbit/s |
| Bandwidth |
10200 MB/s |
| Maximum resolution |
1920 x 1080 pixels |
| Supported graphics resolutions |
1920 x 1080 (HD 1080) |
| Supported video modes |
480i |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Dual Link DVI |
Yes |
| HDCP version |
1.4/2.2 |
| High Dynamic Range (HDR) supported |
Yes |
| DisplayPort Content Protection (DPCP) |
Yes |
| Weight & dimensions |
|---|
| Weight |
10 g |
| Package width |
199 mm |
| Package depth |
178 mm |
| Package height |
20 mm |
| Package weight |
50 g |
| Packaging data |
|---|
| Package width |
199 mm |
| Package depth |
178 mm |
| Package height |
20 mm |
| Package weight |
50 g |
