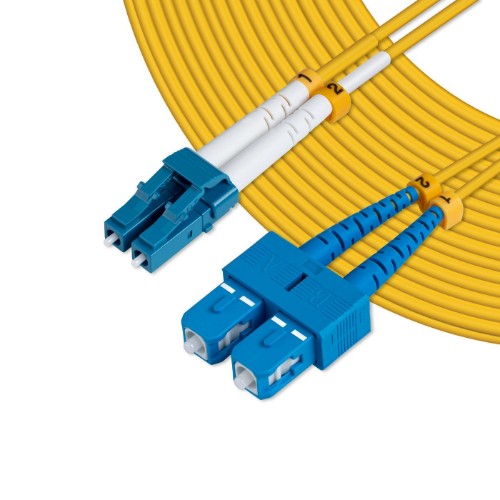

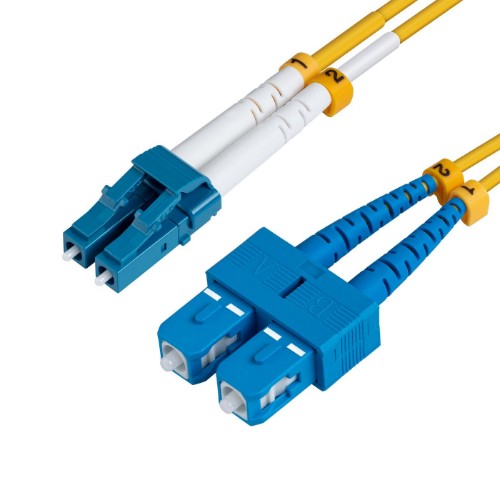

Optical Fibre Cable, LC-SC, Singlemode, Duplex, OS2 (Yellow), 0.5m
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Description
Single mode fiber optic cable is suitable for enterprise network, Telecom rooms, server farms, cloud storage networks and any place where fiber jumper cables are needed. This cable is ideal for connecting 1G/10G/40G/100G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm. The single mode patch cords are manufactured using LSZH cables which conform to IEC, EIA TIA or Telcordia standards.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
LC |
| Connector 2 |
SC |
| Cable length |
0.5 m |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Features |
|---|
| Fibre optic type |
OS2 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Single-mode |
| Connector 1 |
LC |
| Connector 2 |
SC |
| Cable length |
0.5 m |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Insertion loss |
0.3 dB |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Yellow |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Cable length |
0.5 m |
| Package width |
179 mm |
| Package depth |
171 mm |
| Package height |
13 mm |
| Cable diameter |
2 mm |
| Weight |
8 g |
| Package weight |
18 g |
| Packaging data |
|---|
| Package width |
179 mm |
| Package depth |
171 mm |
| Package height |
13 mm |
| Package weight |
18 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
| Other features |
|---|
| Core / cladding diameter |
9/125 µm |
