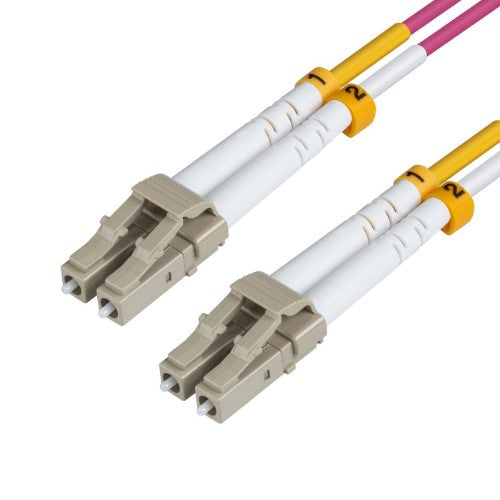

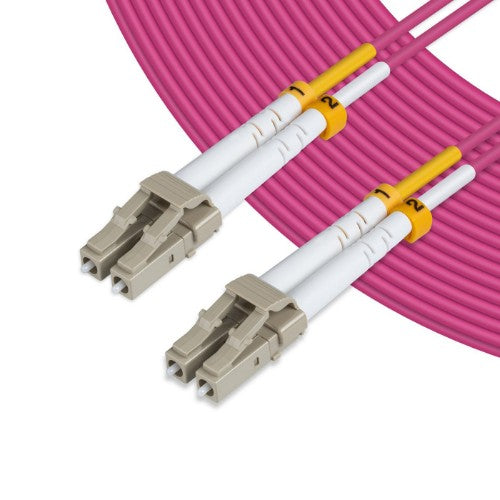

LC-LC Fiber Patch Cable 2m OM4
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Description
OM4 patch cords are used to connect high speed and legacy networks like 10/40/100 gigabit ethernet, fast ethernet and ethernet. This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications. Multimode patch cords are manufactured using LSZH cable and conform to Telcordia, EIA TIA or IEC standards.
Specifications
| Features |
|---|
| Fibre optic type |
OM4 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
2 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Product colour |
Violet |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Bending radius |
6 cm |
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Harmonized System (HS) code |
85447000 |
| Sustainability |
|---|
| Doesn't contain |
Halogen |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-40 - 85 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Weight & dimensions |
|---|
| Bending radius |
6 cm |
| Cable diameter |
2 mm |
| Weight |
20 g |
| Cable length |
2 m |
| Package width |
168 mm |
| Package depth |
159 mm |
| Package height |
17 mm |
| Package weight |
40 g |
| Packaging data |
|---|
| Package width |
168 mm |
| Package depth |
159 mm |
| Package height |
17 mm |
| Package weight |
40 g |
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
2 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.3 dB |
| Attenuation (max) |
0.4 dB/km |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Attenuation (max) |
0.4 dB/km |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
