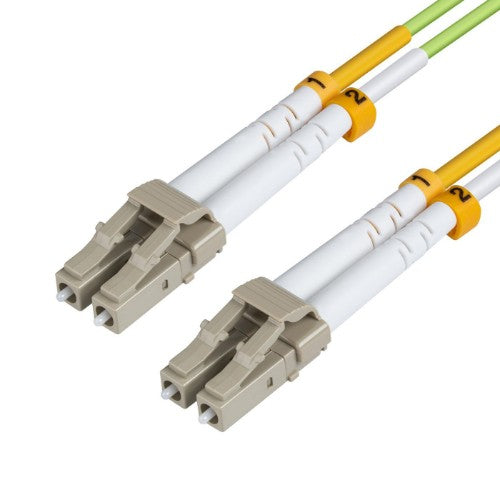

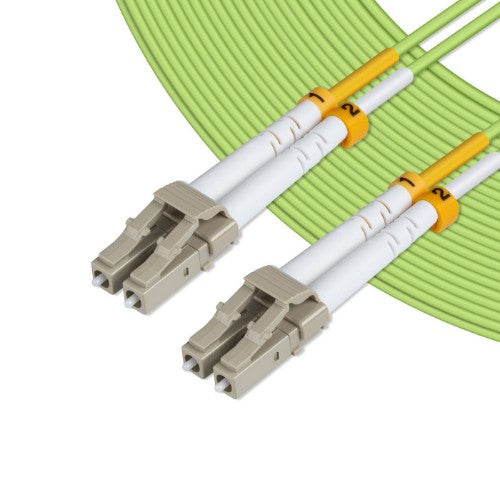

Optical Fibre Cable, LC-LC, Multimode, Duplex, OM5 (Lime Green) 1m
Key Features
- Designed for Data Centers, Industry and Computer Centers
- LSZH (Low Smoke Zero Halogen) and flame retardant
- RoHS compliant
Description
Due to the demand of the continuously increasing bandwith, the fiber patch cables aslo has updated quality. The latest version is Multimode OM5, also known as WBMMF (WideBrand MultiMode Fiber). This is made to meet the growing bandwith requirements.
Specifications
| Technical details |
|---|
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
1 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Insertion loss |
0.2 dB |
| Doesn't contain |
Halogen |
| Compliance certificates |
RoHS |
| Features |
|---|
| Fibre optic type |
OM5 |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fiber mode structure |
Multi-mode |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Cable length |
1 m |
| Full duplex |
Yes |
| Core diameter |
50 µm |
| Cladding diameter |
125 µm |
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Insertion loss |
0.2 dB |
| Harmonized System (HS) code |
85447000 |
| Product colour |
Green |
| Connector 2 gender |
Male |
| Connector 1 gender |
Male |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 60 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Weight & dimensions |
|---|
| Cable length |
1 m |
| Package width |
187 mm |
| Package depth |
173 mm |
| Package height |
14 mm |
| Cable diameter |
2 mm |
| Weight |
8 g |
| Package weight |
18 g |
| Packaging data |
|---|
| Package width |
187 mm |
| Package depth |
173 mm |
| Package height |
14 mm |
| Package weight |
18 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85447000 |
