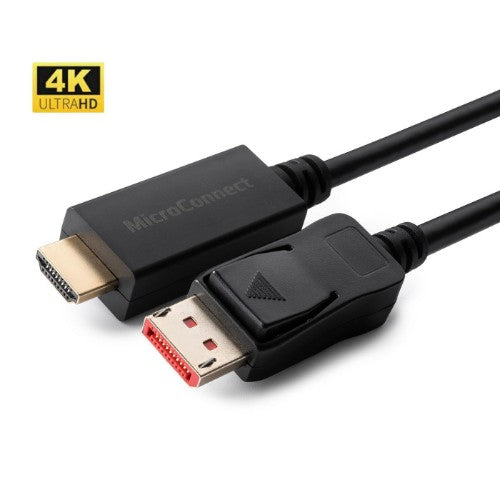

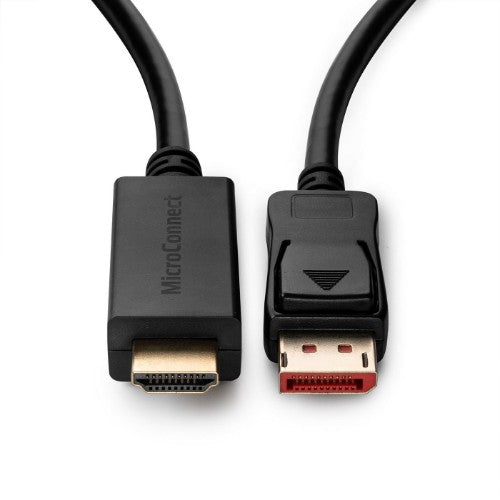

4K DisplayPort 1.4 - HDMI 2.0 Cable 3m
Key Features
- Max. Resolution: 4K Ultra HD 2160p (60 Hz)
- Gold-Plated connectors
- Plug with lock for secure connections
- Signal Direction: DisplayPort to HDMI
- Support DisplayPort 1.2, backwards compatible with 1.1
Description
This high performance DisplayPort to HDMI digital HD cable enables you to convert DisplayPort signals to HDMI signals. It could be for transmitting HD video signals from a computer to a monitor with HDMI interface.
Specifications
| Features |
|---|
| Chipset |
SCDH60V |
| HDMI version |
2.0 |
| DisplayPort version |
1.4 |
| Product colour |
Black |
| Number of shielding layers |
3 |
| Bandwidth |
225 MHz |
| Cable length |
3 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
HDMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector contacts plating |
Gold |
| Cable material |
Copper |
| Jacket material |
Polyvinyl chloride (PVC) |
| AWG wire size |
30 |
| Data transfer rate |
18 Gbit/s |
| Bandwidth |
18000 MB/s |
| 3D |
Yes |
| Maximum resolution |
4096 x 2160 pixels |
| Supported graphics resolutions |
4096 x 2160 |
| Supported video modes |
2160p |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| HDCP version |
1.4/2.2 |
| High Dynamic Range (HDR) supported |
Yes |
| DisplayPort Content Protection (DPCP) |
Yes |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Cable diameter |
6 mm |
| Weight |
170 g |
| Package width |
219 mm |
| Package depth |
159 mm |
| Package height |
38 mm |
| Package weight |
200 g |
| Packaging data |
|---|
| Package width |
219 mm |
| Package depth |
159 mm |
| Package height |
38 mm |
| Package weight |
200 g |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Technical details |
|---|
| Compliance certificates |
RoHS |
