HDMI 4K Splitter 1x 8 Support 4k@60Hz
Key Features
- Support three different EDID modes auto/copy/downscaler
- Support full 3D video format
- Support high resolution up to 4K@60Hz YUV 4:4:4
- Support HDCP 2.2 and HDCP 1.4
- Support High Dynamic Range (HDR) video
- Support 600MHz/6Gbps per channel (18Gbps all channels) bandwidth
- Support 12bit per channel (36bit all channels) deep color
- Support uncompressed audio such as LPCM
- Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
Description

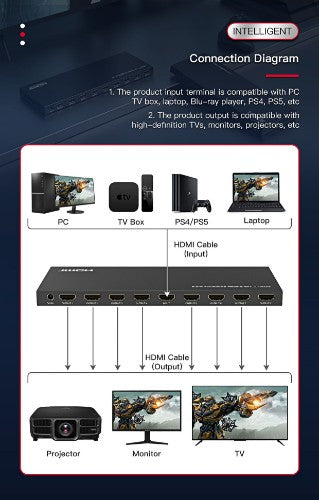

The HDMI™ 4K Splitter 1x8 allows you to connect an HDMI-enabled audio/video source device to eight HDMI™ displays or projectors simultaneously. It supports Ultra HD (4K@60Hz), delivering stunning picture quality with four times the resolution of HD 1080p@60Hz. The splitter is also backward compatible with previous HDMI™ revisions, accommodating devices with 1080p and 720p HDMI™ video resolutions. Even if you don't need 4K video today, the HDMI™ 4K Splitter 1x8 ensures you are prepared for future display technology advancements. It features three EDID modes—auto, copy, and downscaler—to meet the requirements of different display situations.
Specifications
| Ports & interfaces |
|---|
| Video ports quantity |
9 |
| Video port type |
HDMI |
| Video out |
8x HDMI |
| HDMI version |
2.0 |
| Features |
|---|
| LED indicators |
Yes |
| Housing material |
Metal |
| Maximum refresh rate |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| Product colour |
Black |
| Bandwidth |
600 MHz |
| HD type |
4K Ultra HD |
| Number of displays supported |
8 |
| Power |
|---|
| DC-in requirements |
DC 5V@2A Power adapter |
| Weight & dimensions |
|---|
| Weight |
387 g |
| Width |
202.9 mm |
| Depth |
57.9 mm |
| Height |
16 mm |
| Package weight |
756 g |
| Package depth |
50 mm |
| Package width |
140 mm |
| Package height |
220 mm |
| Packaging data |
|---|
| Package weight |
756 g |
| Package depth |
50 mm |
| Package width |
140 mm |
| Package height |
220 mm |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Cables included |
DC |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Video |
|---|
| Maximum refresh rate |
60 Hz |
| Maximum resolution |
4096 x 2160 pixels |
| HDCP |
Yes |
| Bandwidth |
600 MHz |
| Colour |
|---|
| Product colour |
Black |
| Indication |
|---|
| LED indicators |
Yes |
| Technical details |
|---|
| Housing material |
Metal |
| Package width |
140 mm |
| Package height |
220 mm |
| Video out |
8x HDMI |
| HDMI version |
2.0 |
