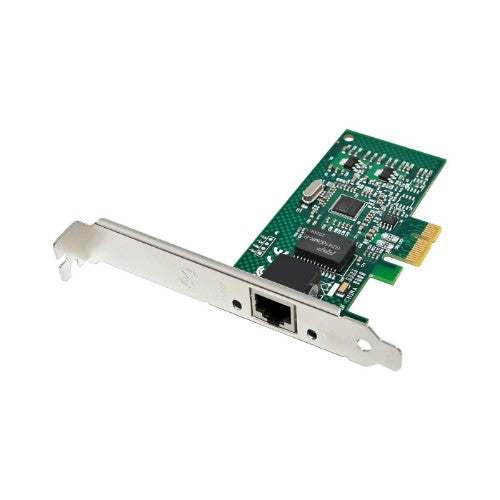

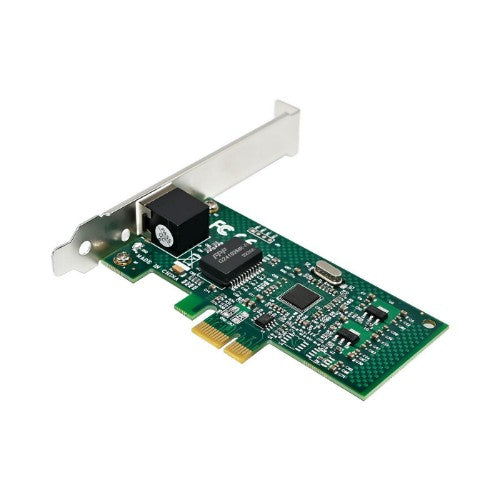

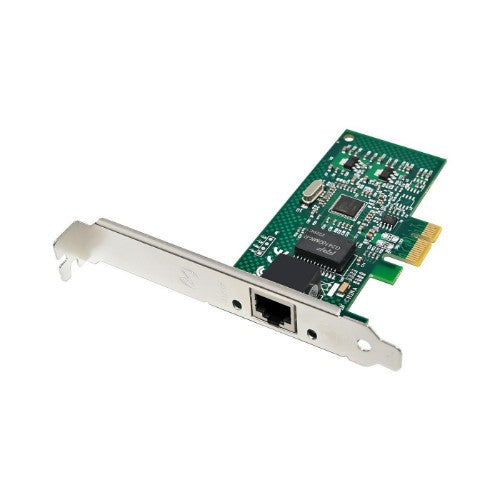

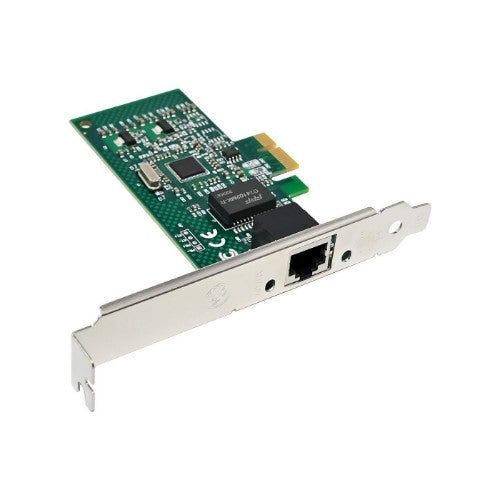

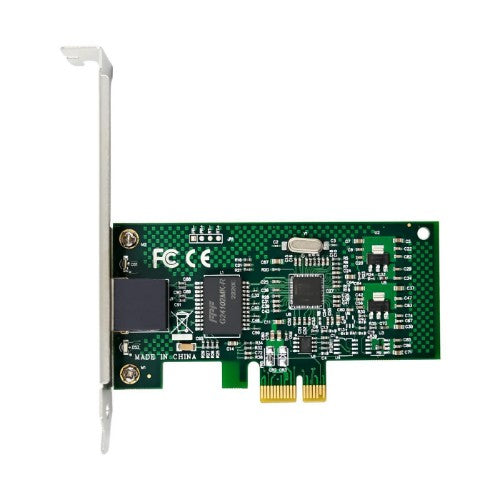

PCIe Intel 82574L Single 1GbE Network Card
Key Features
- High-performance, self-configuring 10/100/1000Mbps connection for PCI Express slots
- Easy installation, maintenance, and advanced management capabilities
- Low-cost, low-power, compact design
- Intel® 82574L Gigabit Ethernet Controller
- Support for most network operating systems
- Interrupt moderation
- PCI Express* x1 slot compatible
- Compatible with Fast Ethernet and Ethernet
- 10/100/1000 Mbps auto-negotiation
Description
MicroConnect MC-PCIE-82574L PCI-E Network Card offers the newest technology for maximizing system performance and increasing end-user productivity. Specifically, the Intel Gigabit CT Desktop Adapter uses auto-negotiation to ensure the adapter runs at the highest available network speed (10/100/1000Mbps), and it maintains full bandwidth capacity with the dedicated bandwidth of a PCI-E input/output (I/O) bus to provide connectivity you can count on. Based on the low power Intel 82574L Gigabit Ethernet Controller, this desktop adapter offers optimal performance in a Low-cost, Low-power, Compact profile. Teaming support and an array of other advanced features enable customers to utilize this adapter as an entry level server adapter as well.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Host interface |
PCI Express |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
1000 Mbit/s |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| Design |
|---|
| Internal |
Yes |
| Component for |
PC |
| Power |
|---|
| Power consumption (typical) |
1.9 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
0 - 90% |
| Weight & dimensions |
|---|
| Weight |
10 g |
| Package width |
174 mm |
| Package depth |
130 mm |
| Package height |
34 mm |
| Package weight |
110 g |
| Packaging data |
|---|
| Drivers included |
Yes |
| Package width |
174 mm |
| Package depth |
130 mm |
| Package height |
34 mm |
| Package weight |
110 g |
| Quantity per pack |
1 pc(s) |
| Manual |
Yes |
| Packaging content |
|---|
| Manual |
Yes |
| Drivers included |
Yes |
| Technical details |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Manual |
Yes |
| Quantity per pack |
1 pc(s) |
