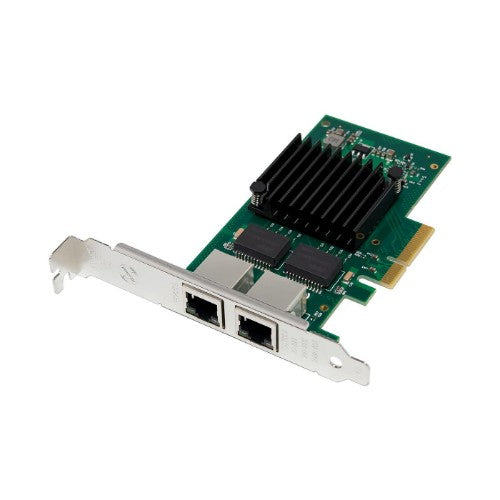

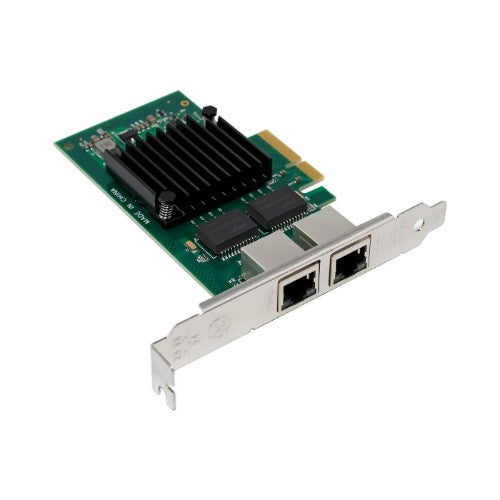

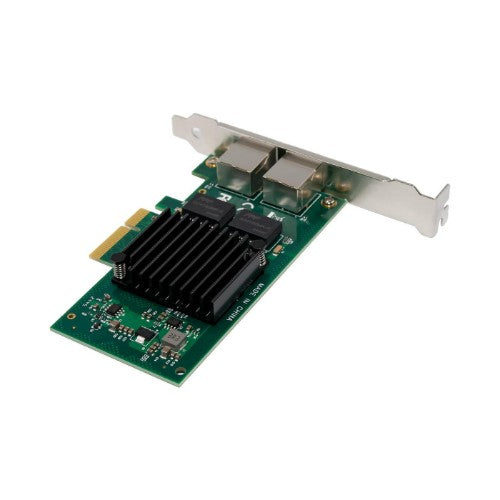

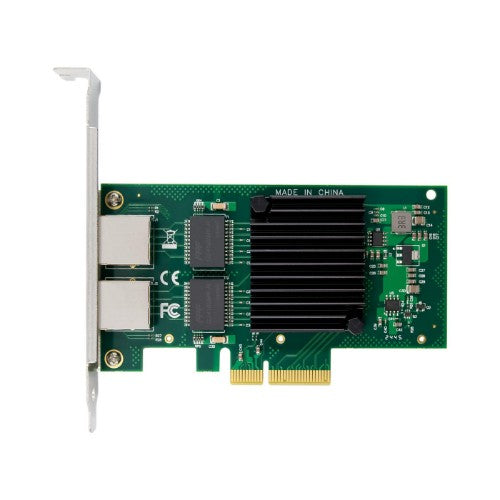

Microconnect MC-PCIE-I350-T2 interface cards/adapter Internal RJ-45

PCIe 2-Port Intel I350AM2 Dual 1GbE Server Card

Key Features

• Halogen-free dual- or quad-port Gigabit Ethernet adapters with copper or fiber interface options
• Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption
• Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports
• Scalable iSCSI performance delivering cost-effective SAN connectivity
• High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s
• High & Low Profile Bracket included

Description

This MicroConnect Intel Ethernet Server Adapter I350 family builds on Intel’s history of excellence in Ethernet products. Intel continues its market leadership with this new generation of PCIe* GbE network adapters. Built with the bridgeless Intel® Ethernet ControllerI350, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC).


Compatible with DELL 3440 SFF/I7/16GB/512SSD/P1000/W10PRO/3Y

Specifications

Ports & interfaces
Internal	Yes
Output interface	RJ-45
Host interface	PCIe
Expansion card standard	PCIe 2.1
Technical details
Chipset	Intel I350-T2
Quantity per pack	1 pc(s)
Performance
Chipset	Intel I350-T2
Product colour	Multicolour
Colour
Product colour	Multicolour
Design
Easy to install	Yes
Internal	Yes
Product colour	Multicolour
Features
Chipset	Intel I350-T2
Power
Power consumption (typical)	2 W
Operational conditions
Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	35 - 90%
System requirements
Windows operating systems supported	Yes
Weight & dimensions
Weight	30 g
Package width	174 mm
Package depth	131 mm
Package height	33 mm
Package weight	156 g
Packaging data
Manual	Yes
Drivers included	Yes
Package width	174 mm
Package depth	131 mm
Package height	33 mm
Package weight	156 g
Quantity per pack	1 pc(s)
Logistics data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
Drivers included	Yes
Other features
Chipset	Intel I350-T2
