Description

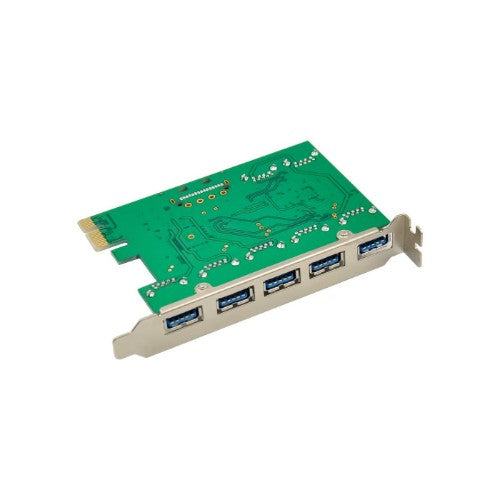

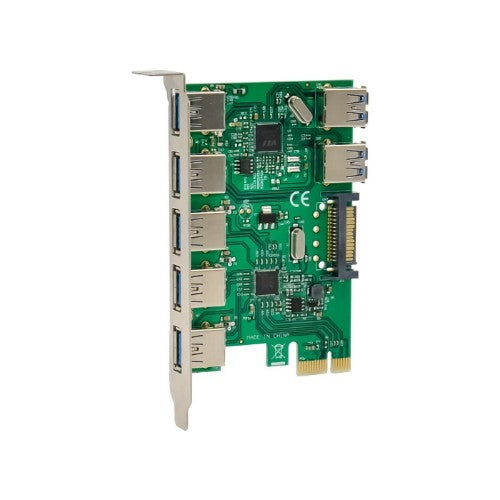

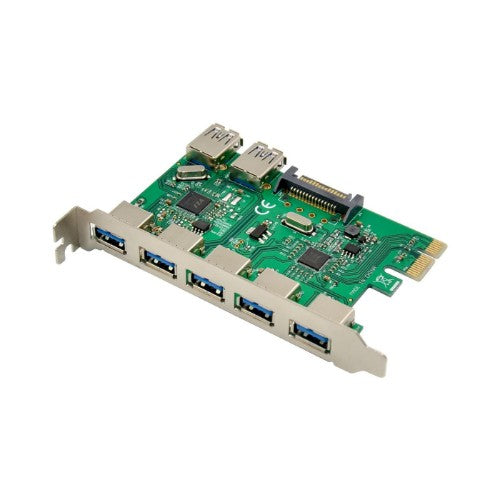

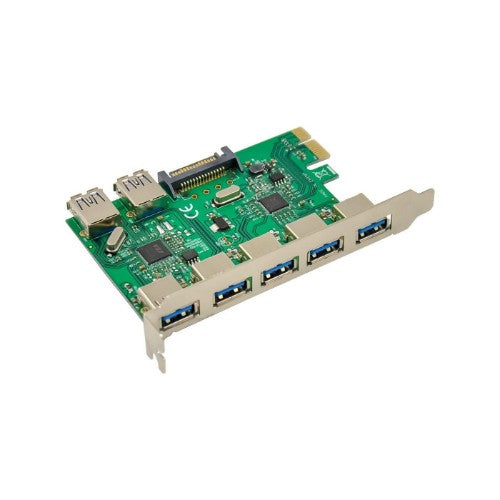

PCIe x1 VL805+VL812 USB3.0 (5+2)-Port Card
Linux, Win7/Win8/Win8.1/Win10 32bit or 64 bit
Key Features
- Compliant with PCI Express base specification 2.0 backward with PCI Express 1.0
- Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
- Compliant to Universal Serial Bus 2.0 Specifications
- Compliant to eXtensible Host Controller Interface Specification Revision 1.0
- Support 4 Ports USB3.0 Type AF
- Support Legacy USB Function, Four Down-stream ports Support Super-Speed (5Gbps)High-Speed(480Mbps),Full-Speed(12Mbps) and Low-Speed (1.5Mbps)
- USB Attached SCSI Protocol(UASP)mode
- Max. 5V/900mA power output to each USB 3.0 Port
- 15pin SATA Power connector for extra power
- Fully plug ,play and hot plug compatible
Description
This product is a single-chip USB 3.0 Host controller that allows a PCI Express platform to connect with USB devices at Super-Speed (5Gbps), High-Speed (480Mbps), Full-Speed (12Mbps), and Low-Speed (1.5Mbps). It supports easy connection of mass storage, printers, scanners, hubs, cameras, and other USB devices.Linux, Win7/Win8/Win8.1/Win10 32bit or 64 bit
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Host interface | PCIe |
| Technical details | |
| Chipset | Via VL805 + VL812 |
| Bandwidth | 5 Gbit/s |
| Quantity per pack | 1 pc(s) |
| Performance | |
| Chipset | Via VL805 + VL812 |
| Bandwidth | 5 Gbit/s |
| Design | |
| Internal | Yes |
| Features | |
| Chipset | Via VL805 + VL812 |
| Bandwidth | 5 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 °C |
| System requirements | |
| Windows operating systems supported | Yes |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 70 mm |
| Weight | 90 g |
| Package width | 174 mm |
| Package depth | 130 mm |
| Package height | 34 mm |
| Package weight | 90 g |
| Packaging data | |
| Drivers included | Yes |
| Package width | 174 mm |
| Package depth | 130 mm |
| Package height | 34 mm |
| Package weight | 90 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Drivers included | Yes |
| Other features | |
| Chipset | Via VL805 + VL812 |
