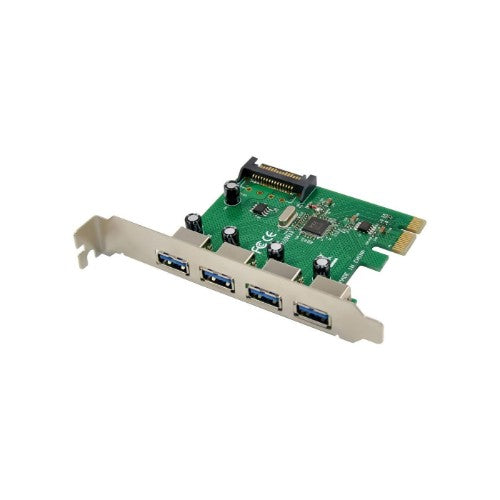

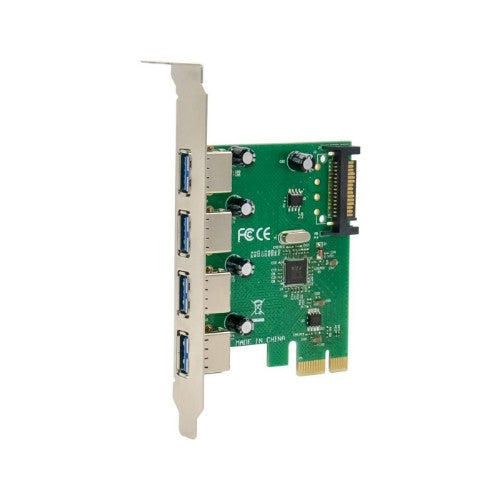

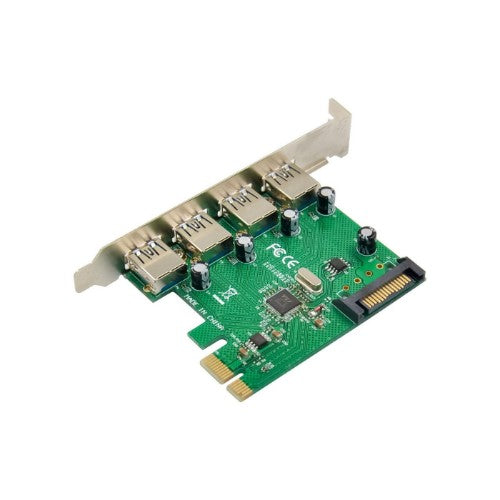

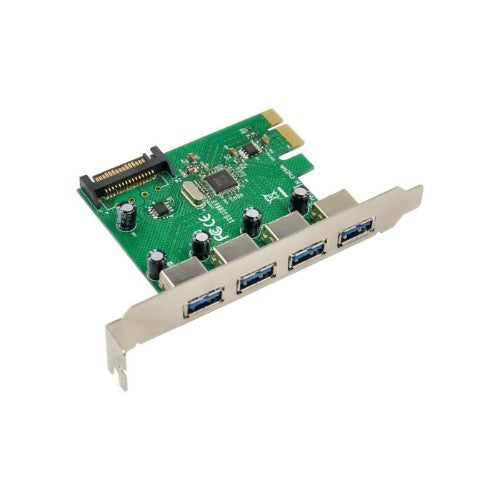

PCIe USB3.0 4-Ports Expansion Card VL805
Key Features
- Compliant to Universal Serial Bus 3.0 Specification Revision 1.0
- Compliant to Universal Serial Bus 2.0 Specifications
- Compliant to eXtensible Host Controller Interface Specification Revision 1.0
- Compliant with PCI Express base specification 2.0
- Support Legacy USB Function, Four Down-stream ports Support Super-Speed(SS) High-Speed(HS),Full-Speed(FS) and Low-Speed(LS)
- Max. 5V/900mA power output to each USB 3.0 Port
- 4-pin power connector for extra power
- Fully plug ,play and hot plug compatible
Description
This production is a single chip USB 3.0 Host controller which enables a PCI Express equipped platform to interface with USB Super-Speed(5Gbps),High-Speed(480Mbps),Full-Speed(12Mbps), and Low-Speed (1.5Mbps) devices, Users can easy to connect your Mass Storage, Printer, Scanner , Hub, Camera and any other USB Devices to used.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Output interface |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Host interface |
PCIe |
| Technical details |
|---|
| Chipset |
Via VL805 |
| Performance |
|---|
| Chipset |
Via VL805 |
| Harmonized System (HS) code |
84733020 |
| Design |
|---|
| Internal |
Yes |
| Features |
|---|
| Chipset |
Via VL805 |
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Weight |
90 g |
| Package width |
174 mm |
| Package depth |
132 mm |
| Package height |
35 mm |
| Package weight |
92 g |
| Packaging data |
|---|
| Package width |
174 mm |
| Package depth |
132 mm |
| Package height |
35 mm |
| Package weight |
92 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Other features |
|---|
| Chipset |
Via VL805 |
