Description
ARM 32bit, 800 MHz, 512 MB RAM, 16 MB Flash, PoE, Gigabit RJ-45, 4x 10G SFP+, 141x115x28 mm
The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
Description

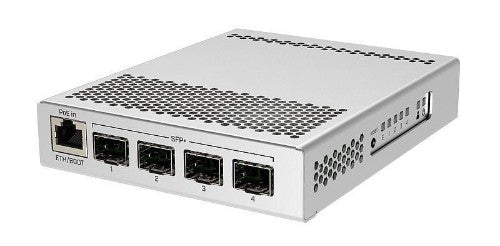

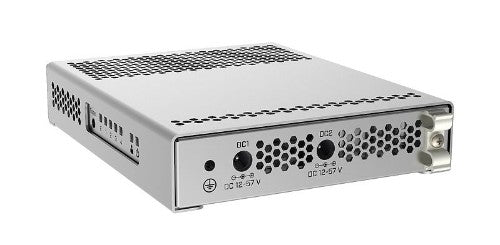

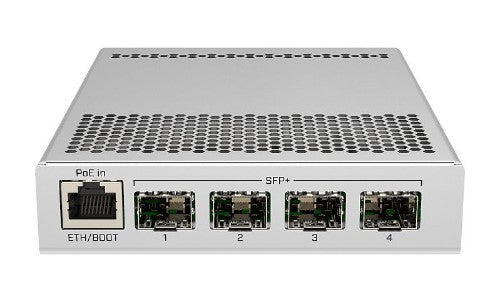

The CRS305 is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.The device has a “Dual boot” feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 1 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | Yes |
| Design | |
| Product colour | White |
| Stackable | No |
| Rack mounting | No |
| Performance | |
| Processor frequency | 800 MHz |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Built-in processor | Yes |
| Stackable | No |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 18 W |
| Power consumption (typical) | 10 W |
| DC input voltage | 12 - 57 V |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Width | 141 mm |
| Depth | 115 mm |
| Height | 28 mm |
| Technical details | |
| Product colour | White |
| Stackable | No |
| Processor frequency | 800 MHz |
| Rack mounting | No |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
