AR9580, 2312-2732 MHz, 802.11b/g/n, 1000 mW, miniPCIe, 7W
Description

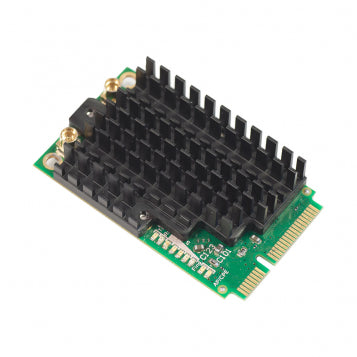

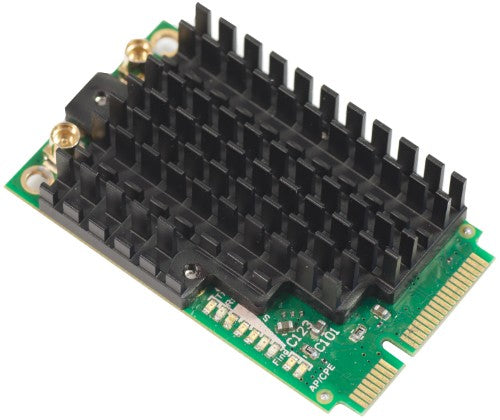

R11e-2HPnD is our new 802.11b/g/n Dual Chain high power 1000mW miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series, RB800 or our new miniPCIe adapters - RB14e/RB14eU
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Connector(s) |
2 x MMCX |
| Interface |
RF Wireless |
| Host interface |
Mini PCI Express |
| Connectivity technology |
Wireless |
| Wireless LAN features |
|---|
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Network |
|---|
| Chipset |
AR9580 |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi |
Yes |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency range |
2.312 - 2.732 GHz |
| Antenna |
|---|
| Frequency range |
2.312 - 2.732 GHz |
| Technical details |
|---|
| Product colour |
Green, Black |
| Harmonized System (HS) code |
85176990 |
| Design |
|---|
| Product colour |
Green, Black |
| Chipset |
AR9580 |
| Internal |
Yes |
| LED indicators |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 65 °C |
| Storage temperature (T-T) |
-5 - 65 °C |
| Weight & dimensions |
|---|
| Width |
51 mm |
| Depth |
30 mm |
| Height |
13 mm |
| Other features |
|---|
| Chipset |
AR9580 |
| Connector(s) |
2 x MMCX |
| Harmonized System (HS) code |
85176990 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
