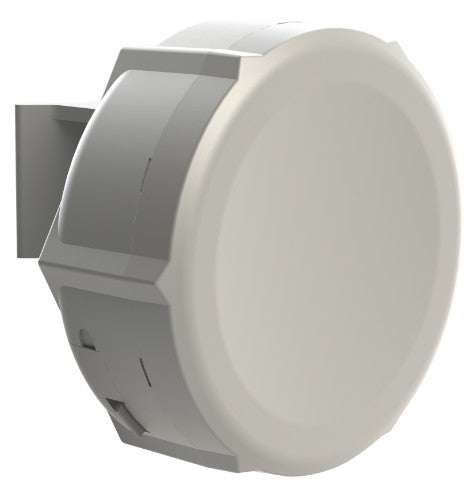

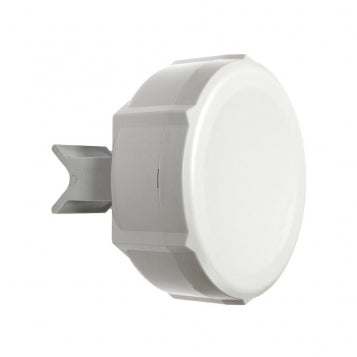

SXT SA5 ac, QCA9557-AT4A-R 720 MHz, 128 MB, Ethernet, 802.11a/n/ac, USB, PoE, 12-57 V
Description
The new AC standard is here, with up to 866Mbit over the air datarate, 256-QAM modulation, and 80MHz channels. 802.11a/n/ac opens up new possibilities and speeds never possible before.
The SXT ac is a new member in our 802.11ac product lineup, currently two models are available — with regular 28 degree antenna, and the SA model with a 90 wide beam- width sector antenna. Also supports 802.11a/n mode and is compatible with all legacy RouterBOARD devices, including Nstream and Nv2 protocols. Both devices come with Gigabit Ethernet.
New products are backwards compatible- for example, you can replace your 5GHz 802.11an legacy Access Point with new 802.11ac product and your existing customers will still be able to connect to it.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
|---|
| 5 GHz |
Yes |
| Modulation |
256-QAM |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Channel bandwidth |
80 MHz |
| Chipset |
QCA9882-BR4A-R |
| Internal memory |
128 MB |
| Built-in processor |
Yes |
| Processor model |
Qualcomm Atheros QCA9557-AT4A-R |
| Wireless LAN features |
|---|
| Modulation |
256-QAM |
| Wireless standard |
a/n/ac |
| Network |
|---|
| Internal |
No |
| Bandwidth |
|---|
| Channel bandwidth |
80 MHz |
| Memory |
|---|
| Internal memory |
128 MB |
| Features |
|---|
| 5 GHz |
Yes |
| Modulation |
256-QAM |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Channel bandwidth |
80 MHz |
| Internal memory |
128 MB |
| Built-in processor |
Yes |
| Processor model |
Qualcomm Atheros QCA9557-AT4A-R |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-A |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (max) |
12 W |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
12 - 57 V |
| Design |
|---|
| Product colour |
White |
| Internal |
No |
| LED indicators |
Power, WAN, WLAN |
| Antenna |
|---|
| Antenna gain level (max) |
13 dBi |
| Antenna features |
Integrated antenna |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 80 °C |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Processor |
|---|
| Built-in processor |
Yes |
| Indication |
|---|
| LED indicators |
Power, WAN, WLAN |
| Weight & dimensions |
|---|
| Width |
140 mm |
| Depth |
65 mm |
| Height |
140 mm |
| Package weight |
265 g |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| Package weight |
265 g |
| AC adapter included |
Yes |
| Other features |
|---|
| Wireless standard |
a/n/ac |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Mounting kit |
Yes |
| AC adapter included |
Yes |
