Description

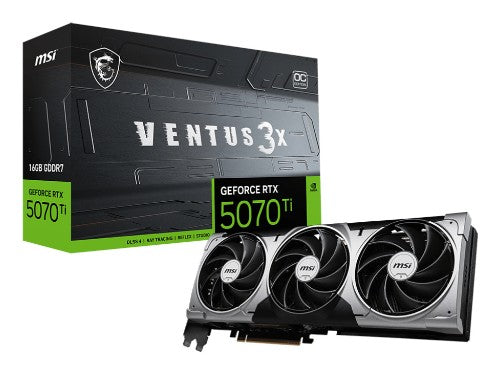

NVIDIA GeForce RTX 5070 Ti, 16GB GDDR7, 256-bit, DisplayPort x 3, HDMI x 1, 300W, 16-pin x1, 303 x 121 x 49 mm, 1073 g
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Key Features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Core Clock:
- Extreme Performance: 2497 MHz (MSI Center)
- Boost: 2482 MHz

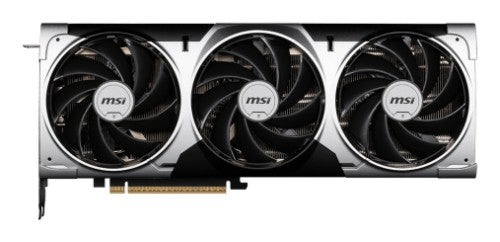

- TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred
- Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management

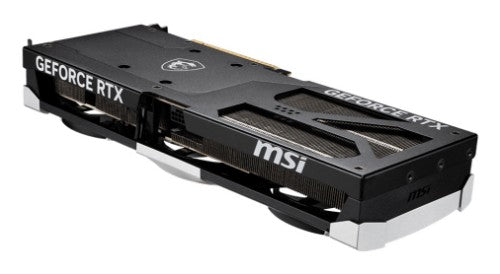

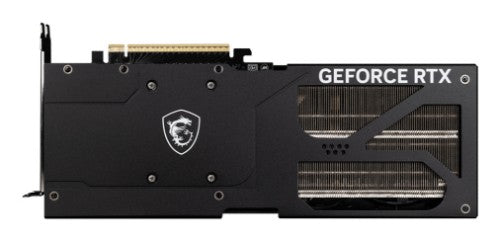

- Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat
- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world
Description
TAKE THE ESSENTIALSVENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Specifications
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Processor frequency | 2497 MHz |
| Processor boost clock speed | 2482 MHz |
| Maximum displays per videocard | 4 |
| CUDA cores | 8960 |
| CUDA | Yes |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | GeForce RTX 5070 Ti |
| Memory | |
| Discrete graphics card memory | 16 GB |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR7 |
| Ports & interfaces | |
| Micro HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPort version | 2.1b |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 0 |

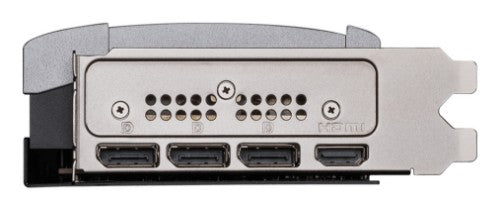

| DisplayPorts quantity | 3 |
| Interface type | PCI Express 5.0 |
| Video | |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDMI version | 2.1b |
| HDCP | Yes |
| CUDA cores | 8960 |
| Performance | |
| NVIDIA G-SYNC | Yes |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Overclocked (OC) edition | Yes |
| Design | |
| Number of fans | 3 fan(s) |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Aluminium, Black |
| Power | |

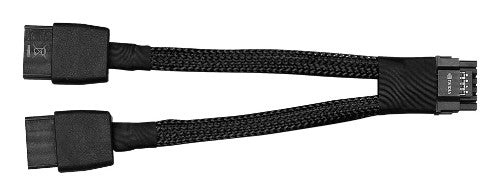

| Supplementary power connectors | 1x 16-pin |
| Power consumption (typical) | 300 W |
| Minimum system power supply | 750 W |
| Technical details | |
| Cooling type | Active |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Aluminium, Black |
| System requirements | |
| Minimum system power supply | 750 W |
| Weight & dimensions | |
| Weight | 1.07 kg |
| Height | 121 mm |
| Depth | 49 mm |
| Length | 303 mm |
| Packaging data | |
| Package type | Box |
| Package weight | 1.57 kg |
