Description

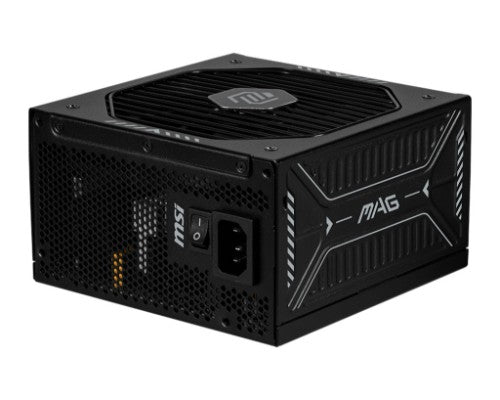

80 PLUS Gold, 90%, Full Modular, 135 mm, 24-pin ATX, Fluid Dynamic Bearing, Active PFC, 1000 W, 100-240 V, 47-63 Hz, OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO, 1 x ATX 24 pin, 2 x EPS 4+4 pin, 1 x PCI-E, 4 x PCI-E 6+2 pin, 11 x SATA, 4 x Peripheral 4 pin, Black, 150 x 150 x 86 mm
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Key Features
- Supports Nvidia® GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized the sound level
- Main 105oC capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Description
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Specifications

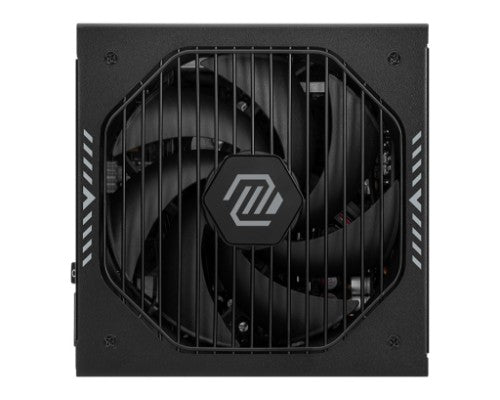

| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Cooling type | Active |
| Power | |
| Total power | 1000 W |
| Peak power | 2200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 999.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Power protection features | No load operation, Over power, Over total voltage, Over voltage, Overcharge, Short circuit, Surge & inrush protection (SIP), Under voltage |
| Efficiency | 90% |
| Ports & interfaces | |

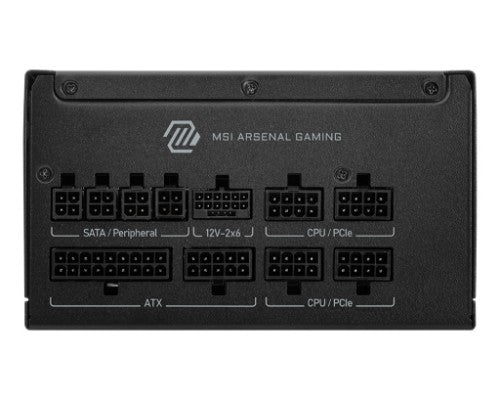

| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 11 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express connector | Yes |
| ATX Power connector (24-pin) | Yes |

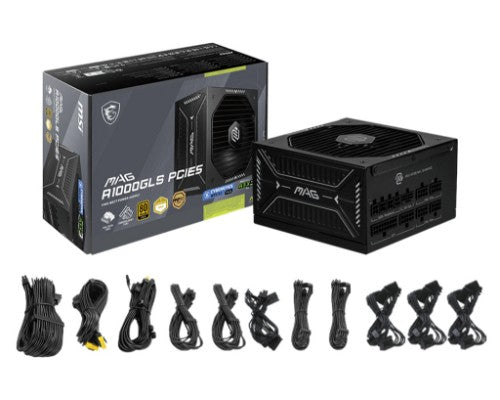

| Cabling type | Fully-Modular |
| PCI Express power connectors (16-pin) | 1 |
| Number of EPS connectors | 2 |
| Performance | |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Bearing technology | FDB |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Packaging data | |
| Package type | Box |
| Certificates | |
| 80 PLUS certification | 80 PLUS Gold |
