Description

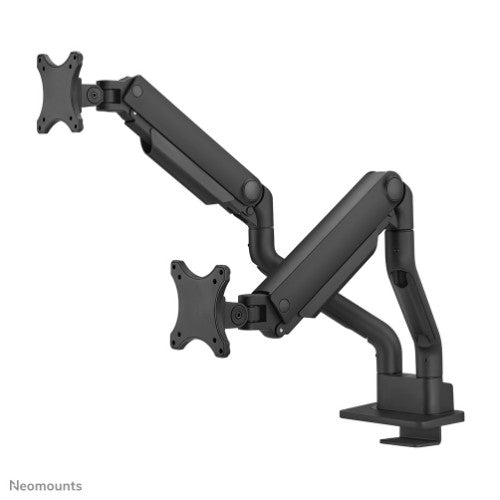

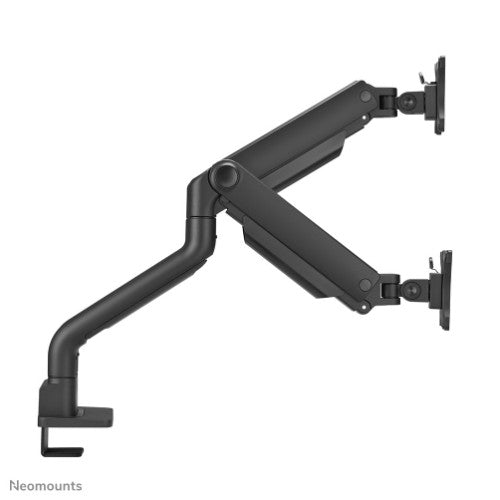

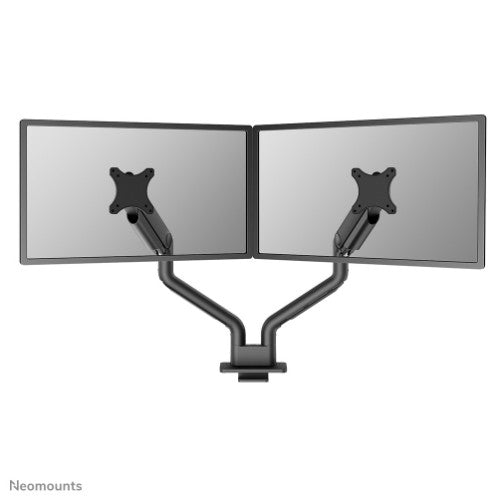

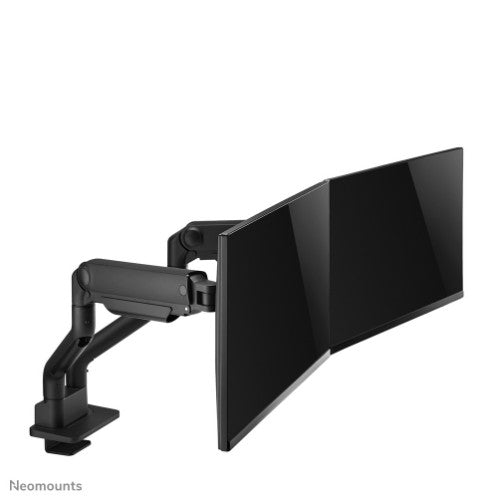

Neomounts NEXT One DS70S-950BL2 Dual monitor arm - 17-35" - 1-18 kg/screen (curved 15 kg/screen) - gas spring - 180°-stop - Topfix - Easy Install-model - 100% plastic-free packaging - black
The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Description
The Neomounts DS70S-950BL2 NEXT One is a full motion desk mount for two screens up to 35". The DS70S-950BL2 is a true all-in one solutions for small to large displays. The NEXT One features a strengthened head to support a higher maximum weight up to 18 kg per screen. The versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the screen. Additionally, the mount has gas spring height adjustment (20,2-52,2 cm) and depth adjustment (8,8-62,5 cm), to create the perfect working position.The DS70S-950BL2 features the nifty 180° stop mechanism, that prevents the mount from making contact with the wall or separation panel when installed near it. The smart cable management system ensures orderly routing of the cables.
The black VESA plates of the NEXT One integrate stylishly with the black back of your screens. The DS70S-950BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. For non-standard hole patterns, Neomounts has various optional VESA adapter plates available. The monitor arm is equipped with a Quick-release VESA system and comes with both a topfix clamp and grommet for quick and easy installation.
The packaging of the DS70S-950BL2 desk mount is 100% plastic free and entirely made from cardboard and paper. The NEXT One products have an extended warranty period of 10-years.
Specifications
| Mounting | |
|---|---|
| Maximum weight capacity (per display) | 18 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 5.5 cm |
| Minimum screen size | 43.2 cm (17") |
| Panel mounting interface | 75 x 75 mm |
| Number of displays supported | 2 |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting | Clamp/Grommet |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Maximum weight capacity | 18 kg |
| Maximum screen size | 88.9 cm (35") |
| Clamp mount desk thickness (max) | 5 cm |
| Grommet mount desk thickness (max) | 5.5 cm |
| Maximum weight capacity (per curved/ultra-wide display) | 15 kg |
| Ergonomics | |
| Cable management | Yes |
| Adjustable depth | Yes |
| Depth adjustment range | 88 - 625 mm |
| Height adjustment | Yes |
| Height adjustment range | 202 - 522 mm |
| Pivot angle | -180 - 180° |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -90 - 90° |
| Angle of rotation | 360° |
| Number of arms | 2 |
| Height adjustment type | Gas spring |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Width adjustment | 115.9 cm |
| Design | |
| Easy to install | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| Technical details | |
| Mounting type | Desk |
| Minimum weight | 1 kg |
| Distance to the wall (min) | 11.9 cm |
| Distance to the wall (max) | 65.6 cm |
| Product colour | Black |
| Width adjustment range | 0 - 1159 mm |
| Cable management | Yes |
| Warranty period | 10 year(s) |
| Weight & dimensions | |
| Width | 186 mm |
| Depth | 656 mm |
| Height | 579 mm |
| Weight | 6.98 kg |
| Package width | 410 mm |
| Package depth | 124 mm |
| Package height | 496 mm |
| Package type | Box |
| Package weight | 7.8 kg |
| Package net weight | 7.8 kg |
| Packaging data | |
| Package width | 410 mm |
| Package depth | 124 mm |
| Package height | 496 mm |
| Package type | Box |
| Package weight | 7.8 kg |
| Package net weight | 7.8 kg |
| Other features | |
| Minimum weight | 1 kg |
| Width adjustment range | 0 - 1159 mm |
| Warranty period | 10 year(s) |
| Mounting type | Desk |
| Mounting | Clamp/Grommet |
| Country of origin | China |
| Logistics data | |
| Master (outer) case width | 260 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case height | 505 mm |
| Master (outer) case gross weight | 16.2 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Products per pallet (EU) | 48 pc(s) |
| Master (outer) case net weight | 13.9 kg |
| Harmonized System (HS) code | 7616991099 |
